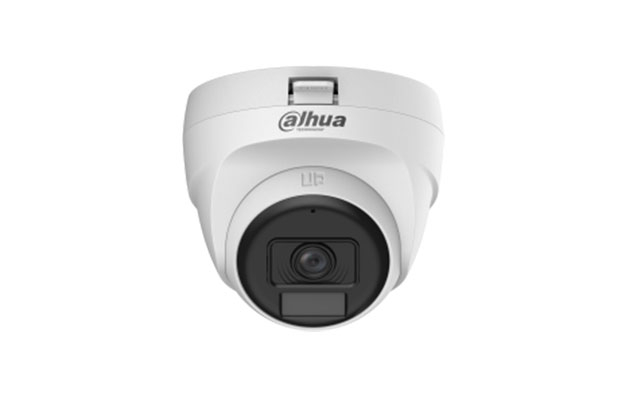

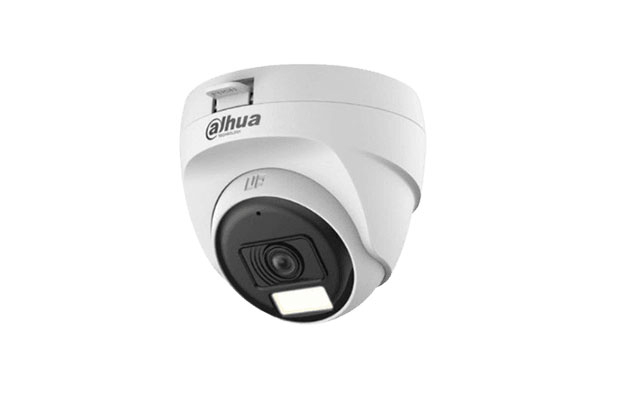

Dahua HAC-T1A21P-U-IL-A 2MP HDCVI IR Eyeball Camera

~~$ 22.00~~ $ 19.00

Part Number: HAC-T1A21P-U-IL-A
Max. 30 fps@1080p.
Smart Dual Light.
25 m illumination distance.
Built-in MIC.
Quick-to-install eyeball saves installation time.
2.8 mm fixed lens (3.6 mm optional).
CVI/CVBS/AHD/TVI switchable.
Warranty: 1-Year on part.

Order Now

Specification

Part Number: HAC-T1A21P-U-IL-A
Camera
Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) × 1080 (V)
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s
Min. Illumination: 0.02 lux@F2.0 (Color, 30 IRE);
0.002 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio: >65 dB
Illumination Distance: IR: 25 m (82.02 ft); Warm light: 20 m (65.62 ft)
Illuminator On/Off Control: Auto;Manual
Illuminator Number: 2 (Warm light);2 (IR light)
Angle Adjustment: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Lens
Lens Type: Fixed-focal
Lens Mount: M12
Focal Length: 2.8 mm;3.6 mm
Max. Aperture: F2.0
Field of View: 2.8 mm: H: 100°; V: 54°; D: 117°, 3.6 mm: H: 80°; V: 43°; D: 94°
Iris Control: Fixed
Close Focus Distance: 2.8 mm: 0.5 m (1.64 ft), 3.6 mm: 0.8 m (2.62 ft)
DORI Distance Lens: 2.8 mm, 3.6 mm
Detect: 44.7 m (146.65 ft), 55.0 m (180.45 ft)
Observe: 17.9 m (58.73 ft), 11.0 m (36.09 ft)
Recognize: 4.5 m (14.76 ft), 11.0 m (36.09 ft)
Identify: 4.5 m (14.76 ft), 5.5 m(18.04 ft)
Video
Video Frame Rate CVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
AHD:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
TVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
CVBS:
PAL: 960H
NTSC: 960H
Resolution: 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night: Auto(ICR)/Color/B/W
BLC: BLC; HLC; DWDR
WDR: DWDR
White Balance: Auto;Area white balance
Gain Control: Auto;Manual
Noise Reduction: 2D NR
Illumination Mode: Smart IR&WL; WL Mode; IR Mode
Mirror: Yes
Privacy Masking: Off/On (8 areas, rectangle)
Certification
Certifications: CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035
Port
Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input: One channel built-in Mic
Power
Power Supply: 12 VDC ± 30%
Power Consumption: Max 2.1 W (12 VDC, LED on)
Environment
Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity: <95% (RH), non-condensing
Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity: <95% (RH), non-condensing
Anti-corrosion Level: Basic Protection
Structure
Casing Material: Plastic
Product Dimensions: Φ85.0 mm × 77.1 mm (Φ3.35" × 3.04")
Net Weight: 0.11 kg (0.24 lb)
Gross Weight: 0.12 kg (0.26 lb)
Installation: Wall mount; ceiling mount.
