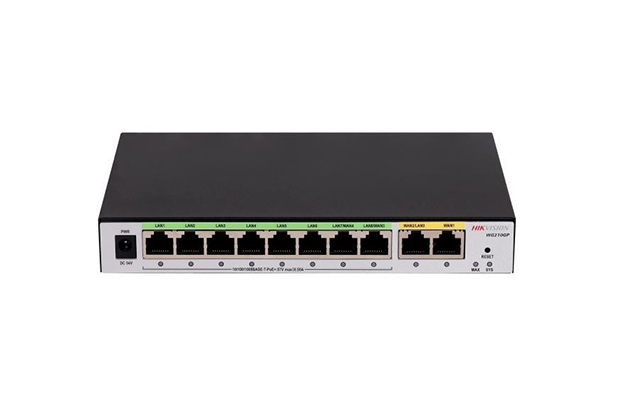

Hikvision DS-3WG210GP-SI 10-Port PoE Router

~~$ 124.00~~ $ 115.00

Part Number: DS-3WG210GP-SI
Concurrent Users 200
Up to 4 WAN Loadbalancing
2 Gigabit WAN Ports with 1 WAN/LAN Switchable
8 Gigabit PoE LAN Ports with 2 LAN/WAN Switchable
200 APs, 75w, IPSec throughput 100Mpbs
40K Concurrent sessions, Desktop
Warranty: 1 Year on Part.

Order Now

Specification

Part Number: DS-3WG210GP-SI
General
Shell: Metal
Weight: 0.5 kg (1.1 lb)
Working Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Working Humidity: 5% to 95% (no condensation)
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Storage Humidity: 5% to 95% (no condensation)
Product Dimensions (W × H × D): 190 mm × 125 mm × 27 mm (7.48'' × 4.92'' × 1.06'')
Packing List: AC Router × 1,Regulatory Compliance and Safety Information × 1,Quick Start Guide ×1,Screw Pack × 1,Power Supply Adaptor × 1,Power Cord × 1
Power Consumption: Max. 80 W
WLAN Parameters
Maximum Number of Managed APs: 200
Maximum Number of Clients: 200
Bandwidth: 1 Gbps
Networking Access: Support fixed IP address, DHCP automatic address acquisition, PPPoE dial-up and other methods
Number of WAN Access: Up to 4 WAN Load balancing
Multi-WAN Load Balancing: Load balancing based on the destination address of the carrier,Load balancing based on link bandwidth,Load balancing based on user (IP address),Policy-based routing (PBR) for forwarding over specified lines,End-to-end link detection and backup functions
CAPWAP Tunnel: Auto AP serial number entry,AC discovery (DHCP option43, DNS),Assign basic AP network parameter through AC (Supported: Static IP, VLAN, Connected AC address)
Access Control: Open System,Shared-Key,WPA,WEP-64/128, dynamic WEP,WPA2,WPA3
Software Specifications
Layer 2 Protocol: ARP,VLAN,ARP (gratuitous ARP)
Network Feature: IPv4,DDNS,UPnP,DHCP Server,NTP Client,Multicast,PIM,MLD Snooping,IGMP Snooping,Multicast group
VPN: IPSec VPN:,Support 100 IPSec connections,Support AH and ESP protocols (ESP supports 3DES and AES encryption algorithms),Support IKE to automatically establish SA,Support MD5 and SHA-1 authentication algorithms,Support IKE main mode and aggressive mode,Support NAT-T traversal,Support IPSec connection configuration by domain name (DDNS)
NAT: 40000 Max. Access
AP Management: AP Discovery,AP Management,Support Multi-SSID Configuration,SSID Hiding,Channel Setting
User Management: User Authentication,Support user blacklist and whitelist,Controls the number of access users:,Based on APs,Based on SSIDs,Logs out users in any of the following ways:,Using RADIUS DM messages,Using commands,Support various methods to view information:,Displays the number of online users in an ESS, AP, or radio.,Collects packet statistics on air interface based on user.
Security: Firewall Policy,DDoS Defending,IP/MAC/URL Filtering,ARP Defending,Support DDoS attack prevention and statistics,Support Prevent WAN port ping,Support Prevent TCP syn scan,Support Prevent TCP Stealth FIN scan,Support Prevent TCP Xmas Tree scanning,Support Prevent TCP Null scan,Support Prevents UDP scanning,Support Prevent Land attacks,Support Protects against Smurf attacks,Support Protects against WinNuke attacks,Support Protect against Ping of Death attacks,Support Protect against SYN Flood attacks,Support Protect against UDP Flood attacks,Support Protect against ICMP Flood,Support Protect against IP Spoofing,Support Prevent Fragmented Packet Attack,Support Protect against TearDrop attack,Support Protect against Fraggle attack
System Maintenance: Support device management via web.,Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.,Support remote management via Hik-Partner Pro. ,Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.,Support port mirroring for fault locating.
Version Upgrade: Support upgrade by Web,Support upgrade by HPP
Hik-Partner Pro: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display topology information.
4. Display the alarm status.
5. Restart ports and devices.
6. Remotely upgrade the device.
Hardware Specifications
WAN Port: 2 Gigabit WAN Ports with 1 WAN/LAN Switchable
LAN Port: 8 Gigabit PoE LAN Ports with 2 LAN/WAN Switchable
PoE Port: PoE Ports: Ports 1to 8 , IEEE802.11af/at
Forwarding Capacity: 20 Gbps
RAM: 256 MB
Flash: 128 MB
Power Supply: 54 VDC, 1.48A
Reset Button: Hardware Resetting Button
Approval
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Radio EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
Warranty: 1 Year on Part.
