Hikvision DS-3WR4G12C AC1200 4G CAT4 Wireless Router

$ 48.00 $ 45.00
  • Part Number: DS-3WR4G12C/EU
  • AC1200 4G CAT4 Wireless Router
  • AC1200 Dual-band Wi-Fi
  • 4G Boost Faster Speed
  • Instantly Access a Mobile Network With a SIM Card
  • Warranty: 1 year on part.

Specification

  • Part Number: DS-3WR4G12C/EU
  • General
  • Product Dimensions (W × H × D): 233.9mm×151.4mm×40.3mm
  • Package Dimensions (W × H × D): 405mm×307mm×80mm
  • Net Weight: 0.560kg
  • Packing List:
  • 4G LTE Router × 1
  • Power Adapter × 1
  • Detachable Antenna × 2
  • Ethernet Cable × 1
  • SIM Card Adapter × 1
  • Quick Start Guide × 1
  • Regulatory Compliance and Safety Information × 1
  • Packing Method: Single pack
  • Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
  • Working Humidity: 10% to 90% RH non-condensing
  • Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
  • Storage Humidity: 5% to 90% RH non-condensing
  • Installation Mode: Desktop installation
  • Max. Power Consumption: ≤ 9 W
  • Gross Weight: 0.620 kg
  • Wireless Parameter
  • Max. Transmission Rate of Air Interface:
  • ≤ 1167 Mbps
  • 2.4 GHz: 300 Mbps
  • 5 GHz: 867 Mbps
  • Wireless Standard: IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
  • Working Frequency Band: 2.4 GHz,5 GHz
  • Transmitting Power: 16dBm @ 2.4G-mcs7、17dBm @ 5G-mcs9
  • Wireless Performance: 2*2 MIMO supported
  • Receiving Sensitivity:
  • -58 ± 2 dB@AC80 -MCS9
  • -84 ± 2 dB@AC80 -MCS0
  • Antenna: 2 high gain antennas
  • Network Type: LTE CAT.4
  • Mobile Standards: FDD LTE, TDD-LTE,WCDMA
  • Mobile Bands 4G FDD LTE: B1/B3/B7/B8/B20/B28AB,4G TDD-LTE: B38/B40/B41,3G WCDMA: B1/B8
  • 4G Speed DL: 150 Mbps, Upload: 50 Mbps
  • Hardware Parameter

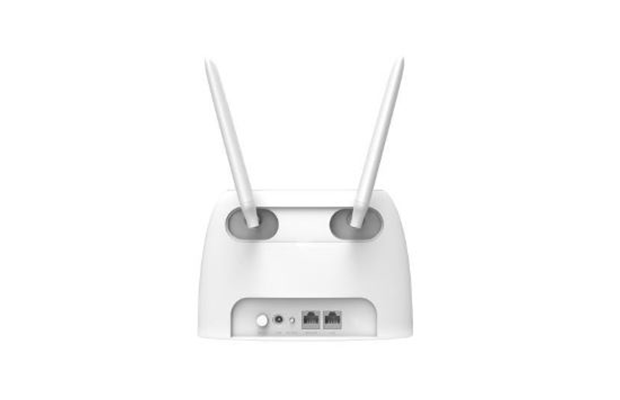

  • Network Interface: 2 × RJ45, 10/100 Mbps auto-negotiation
  • LED Indicator: power LED*1、internet LED*1、WiFi LED*1、RJ45 LED*1、LTE LED*3
  • Reset: Reset button*1
  • Power Supply Method: 9 VDC, 1 A power adapter power supply
  • Power Specifications: 9 VDC, 1 A
  • Software Function
  • Application Function: 3G/4G Route Mode, Wireless Router Mode, and AP Mode supported
  • DHCP Server supported
  • Guest Network Configuration supported
  • Signal Adjustment supported
  • WiFi Schedule supported
  • Security Mode: WPA-PSK, WPA2-PSK, WPA and WPA2 supported
  • Security Mechanism: Hide SSID
  • Management Method: Web
  • Upgrade: Web
  • System Log: System log
  • Warranty: 1 year on part.
