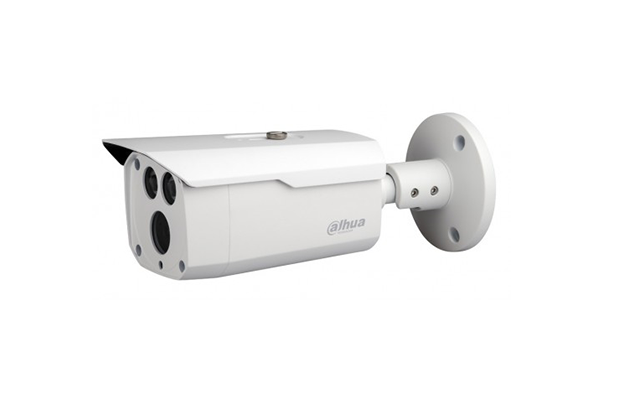

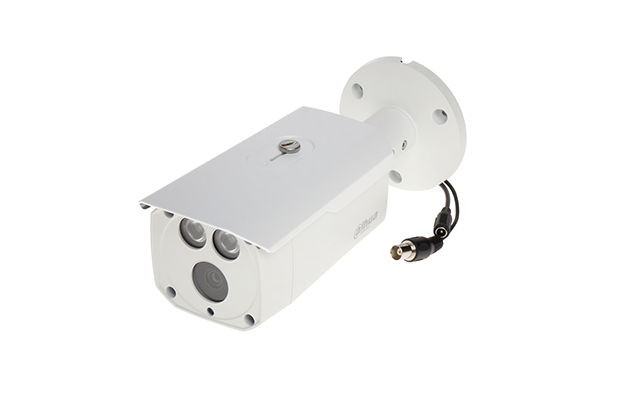

Dahua DH-HAC-HFW1200DP 2MP HDCVI IR Bullet Camera

$ 36.00 $ 32.00
  • Part Number: DH-HAC-HFW1200DP
  • The parameters and datasheets below can only be applied to 1200-S5 series
  • Max 30fps@1080P- CVI/CVBS/AHD/TVI switchable
  • 3.6mm fixed lens (6mm, 8mm optional)
  • Max. IR length 80m, Smart IR
  • IP67, DC12V
  • Camera Dimensions 241.8 mm × 90.4 mm × 90.4 mm ( 9.52" × 3.56" × 3.56" )
  • Warranty: 1Year on part

Specification

  • Part Number: DH-HAC-HFW1200DP
  • Camera
  • Image Sensor: 1/2.7" CMOS
  • Effective Pixels: 1920(H)×1080(V), 2MP
  • Scanning System: Progressive
  • Electronic Shutter Speed: PAL: 1/25~1/100000s, NTSC: 1/30~1/100000s
  • Minimum Illumination: 0.02Lux/F2.0, 30IRE , 0Lux IR on
  • S/N Ratio: More than 65dB
  • IR Distance: Up to 80m (262feet)
  • IR On/Off Control: Auto / Manual
  • IR LEDs: 2
  • Lens
  • Lens Type: Fixed lens / Fixed iris
  • Mount Type: Board-in
  • Focal Length: 3.6mm (6mm, 8mm Optional)
  • Max Aperture: F2.0
  • Angle of View: H: 89.9°(54.7°/41.6°)
  • Focus Control: N/A
  • Close Focus Distance: 900mm(2000mm/2800mm), 35.4'' (78.7''/110.2'')
  • DORI Distance
  • DORI Definition Distance
  • Detect: 25px/m (8px/ft), 3.6mm: 53m(175ft), 6mm: 80m(262ft), 8mm: 104m(341ft)
  • Observe: 63px/m (19px/ft), 3.6mm: 21m(70ft), 6mm: 32m(105ft), 8mm:42m(136ft)
  • Recognize: 125px/m (38px/ft), 3.6mm: 11m(35ft), 6mm: 16m(52ft), 8mm:21m(68ft)
  • Identify: 250ppm (76px/ft), 3.6mm: 5m(17ft), 6mm: 8m(26ft), 8mm: 10m(34ft)
  • Pan / Tilt / Rotation
  • Pan/Tilt/Rotation Pan: 0° ~ 360°, Tilt: 0° ~ 87°, Rotation: 0° ~ 360°
  • Video
  • Resolution: 1080P (1920×1080)
  • Frame Rate: 25/30fps@1080P, 25/30/50/60fps@720P
  • Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch)
  • Day/Night: Auto (ICR) / Manual
  • OSD Menu: Multi-language
  • BLC Mode: BLC / HLC / DWDR
  • WDR DWDR Gain Control: AGC
  • Noise Reduction: 2D
  • White Balance: Auto / Manual
  • Smart IR: Auto / Manual
  • Construction
  • Casing: Aluminium
  • Dimensions: 241.8mm×90.4mm×90.4mm (9.52"×3.56"×3.56")
  • Net Weight: 0.62kg (1.36lb)
  • Gross Weight: 0.73kg (1.61lb)
  • Warranty: 1 Year on part.
