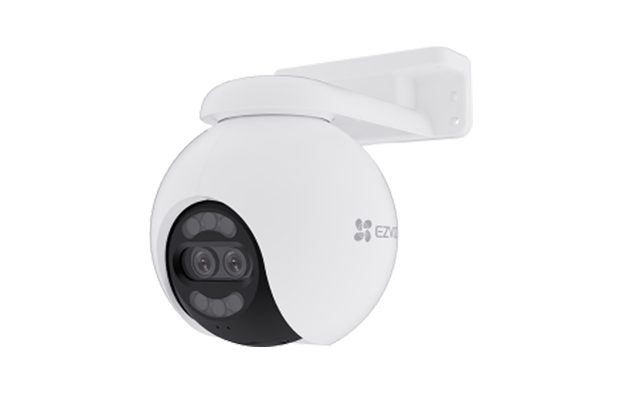

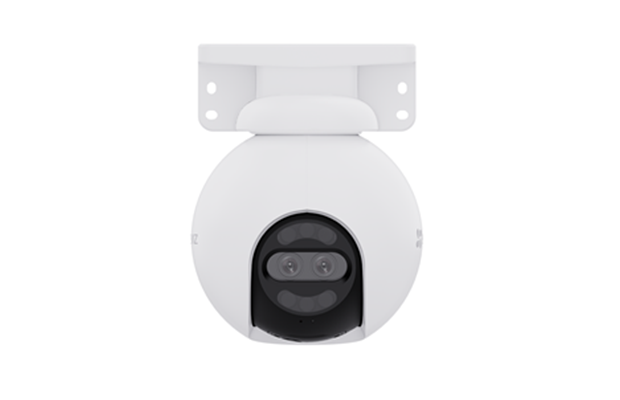

EZVIZ H80x 4K Dual-Pan & Tilt Wi-Fi Camera

~~$ 90.00~~ $ 85.00

Part Number: CS-H80X
1/2.7” + 1/2.9” Progressive Scan CMOS
0.01 Lux @ (F1.0, AGC ON)
0 Lux with IR (*data is obtained from EZVIZ laboratories)
4K Resolution
ColorFULL Night Vision under Ultra-Low Light
360° Panoramic View
Warranty: 1 year on part.

Order Now

Specification

Part Number: CS-H80x-R100-8G82WKFL
Camera
Image Sensor: 1/2.7” + 1/2.9” Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Lens: 4mm @ F1.0, viewing angle: 46° (Vertical), 87° (Horizontal), 103° (Diagonal) (1080p) 4mm @ F1.6, viewing angle: 46° (Vertical), 87° (Horizontal), 103° (Diagonal) (4K)
PT Angle: Pan: 340°, Tilt: 70°
Minimum Illumination: 0.01 Lux @ (F1.0, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount: M12
Day / Night Switch: IR-cut filter with auto switch
DNR: 3D DNR
WDR: Digital WDR
BLC: Supports
Black & White Night: 30m / 98ft
Video & Audio
Max Resolution: 3840 × 2160
Frame Rate: Self-Adaptive during network transmission
Video Compression: H.265 / H.264
H.265 Type: Main Profile
Video Bit Rate: Ultra HD; Quad HD; Full HD;HD. Adaptive bit rate.
Audio Bit Rate: Self-Adaptive
Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Security: 64 / 128 - bit WEP, WPA / WPA2, WPA-PSK / WPA2 - PSK
Transmission Rate: 11b : 11 Mbps, 11g : 54 Mbps, 11n : 150 Mbps
Wi-Fi Pairing: AP paring
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Functions
Smart Alarm: AI-powered human shape detection AI-powered vehicle shape detection
Customized Alert Area: Supports
Two-way Talk: Supports
Auto Tracking: Supports
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage
Local Storage: Supports microSD Card (Up to 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)
General
Operating Conditions: 30ºC ~ 50ºC Humidity 95% or less (non-condensing)
IP Grade: IP65
Power Supply: DC 12V/1A
Power Consumption: MAX. 12W
Dimensions: 170 × 112 × 154 mm (6.69 × 4.41 × 6.06 inch)
Packaging Dimensions: 205 × 176 × 194 mm (8.07 × 6.93 × 7.64 inch)
Weight Product: 630 g (22.22 oz) Weight with package: 1035 g (36.5 oz)
In the box
- H80x Dual 4K Camera
- Drill Template
- Waterproof Kit
- Screw Kit
- Power Adapter
- Regulatory Information × 2
- Quick Start Guide
Certifications
Certifications: CE / UL / WEEE / RoHS / REACH
Warranty: 1 year on part.
