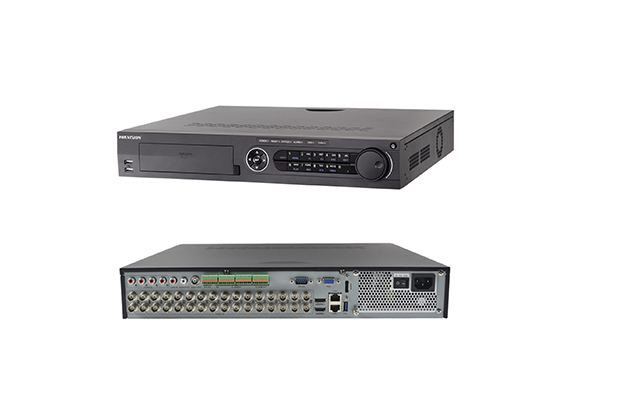

Hikvision iDS-7332HUHI-M4/S 32-ch 5MP AcuSense DVR

~~$ 580.00~~ $ 570.00

Part Number: iDS-7332HUHI-M4/S
32-ch 5MP 1.5U H.265 AcuSense DVR
Up to 32-ch analog camera inputs and 4 SATA interfaces
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
Up to 8 MP@8 fps/5 MP@12 fps encoding capability
HDTVI/AHD/CVI/CVBS/IP video inputs
Up to 64-ch network camera inputs
POS triggered recording and POS information overlay
RAID 0, 1, 5, 6, 10 for even more reliable data storage, effectively avoids data loss risks
Warranty: 1 year on part

Order Now

Specification

Part Number: iDS-7332HQHI-M4/S
Recording
Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution: 8 MP/3K/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate: 32 Kbps to 10 Mbps
Dual-Stream: Support
Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bitrate: 64 Kbps
Video And Audio
IP Video Input: 32-ch (up to 64-ch); Up to 12 MP resolution; Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input: 32-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Incoming Bandwidth: 320 Mbps
Outgoing Bandwidth: 256Mbps
HDTVI Input: 8 MP, 3K, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
AHD Input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input: PAL/NTSC
CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI 1 Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
Audio Input: 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
Synchronous Playback: 16-ch
VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network
Remote Connection: 128
Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
Network Interface: 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA: 4 SATA interfaces
ESATA: Support
Capacity: Up to 12 TB capacity for each disk
Serial Interface: RS-232, RS-485 (full-duplex), Keyboard
Alarm In/Out: 16/4
USB Interface: Front panel: 2 × USB 2.0, Rear panel: 1 × USB 3.0
General
Power Supply: 100 to 240 VAC, 50 to 60 Hz
Consumption: ≤ 55 W (without HDD)
Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity: 10% to 90%
Dimension (W × D × H): 445 × 400 × 71 mm (17.5 × 15.7 × 2.8 inch)
Weight: ≤ 7 kg (without HDD, 15.4 lb.)
Warranty: 1 Year on part.
