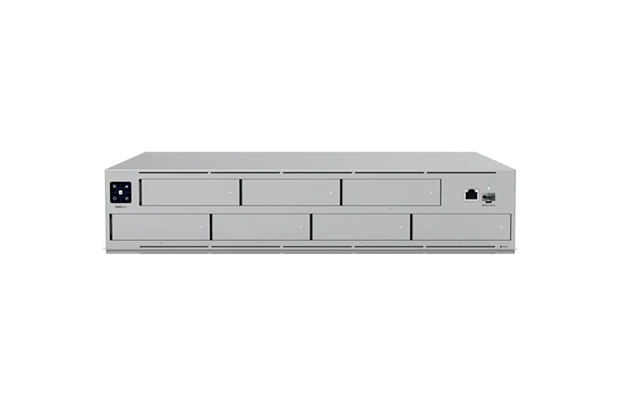

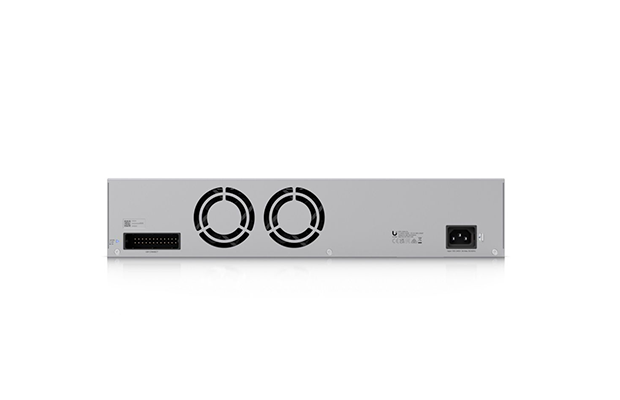

UbiquiTi UNAS-Pro 7-bay 2U Rack-mount NAS

$ 570.00 $ 739.00
  • Part Number: UNAS-Pro
  • 2U rack-mount NAS
  • 7 2.5/3.5" drive bays
  • 1x GbE RJ45 port
  • 1x 1/10 GbE SFP+ port
  • 10 Gbps performance designed for large-scale file storage and sharing.
  • Warranty 1 Year on part.
Order Now

Specification

  • Part Number: UNAS-Pro
  • Mechanical
  • Dimensions 442 x 325 x 87 mm (17.4 x 12.8 x 3.4")
  • Weight: Without mounting brackets: 9.2 kg (20.3 lb)
  • With mounting brackets: 9.5 kg (20.8 lb)
  • Enclosure material: SGCC steel
  • Mount material: SGCC steel
  • Hardware
  • Processor: Quad-Core ARM® Cortex®-A57 at 1.7 GHz
  • System memory: 8 GB
  • Management interface: Ethernet In-Band
  • Networking interface: (1) GbE RJ45 port
  • Networking interface: (1) 1/10 GbE SFP+ port
  • RF interface: Bluetooth 4.1
  • Power method: (1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz
  • Power method: (1) USP-RPS DC input, 11.5V DC, 13.91A
  • Power supply: AC/DC, internal, 200W
  • Supported voltage range    100—240V AC
  • Max. power consumption: 160W
  • Max. power budget for Drives: 135W
  • ESD/EMP protection: Air: ± 12kV, contact: ± 8kV
  • LCM Display: (1) 1.3" touchscreen
  • Ambient operating temperature: -5 to 40° C (23 to 104° F)
  • Ambient operating humidity: 5 to 95% noncondensing
  • Certifications: FCC, CE, IC
  • LEDs
  • Ethernet: Green: 1 Gbps
  • Amber: 10/100 Mbps
  • SFP+: White: 10 Gbps
  • Green: 1 Gbps
  • HDD: White: disk detected
  • Amber: disk error
  • RPS: Blue: ready
  • Application Requirements
  • UniFi Drive: Version 1.16.0 and later
  • Warranty 1 Year on part.
