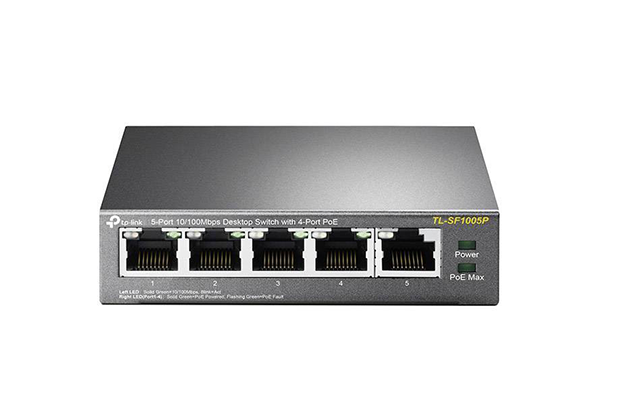

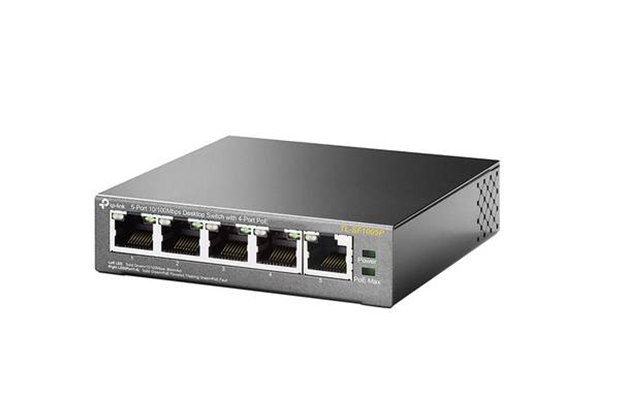

TP-Link TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+

$ 40.00 $ 35.00
  • Part Number: TL-SF1005P
  • 5× 10/100 Mbps RJ45 ports
  • 4× PoE+ ports transfer data and power on individual cables
  • Works with IEEE 802.3af/at compliant PDs
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 67 W for all PoE ports*
  • Up to 250m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Plug and play with no configuration required
  • Warranty: 2 Years on part.

Specification

  • Part Number: TL-SF1005P
  • HARDWARE FEATURES
  • Interface:
  • 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports)
  • AUTO Negotiation/AUTO MDI/MDIX
  • Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • Fan Quantity: Fanless
  • Physical Security Lock: Yes
  • External Power Supply: External Power Adapter (Output: 53.5 V DC / 1.31 A)
  • Packet Forwarding Rate: 0.744 Mpps
  • PoE Ports (RJ45):
  • Standard: 802.3 af/at compliant
  • PoE Ports: Ports 1–4
  • Power Supply: 67 W
  • Mac Address Table: 2K
  • Jumbo Frame: 2 KB
  • Switching Capacity: 1 Gbps
  • Dimensions ( W x D x H ): 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
  • Max Power Consumption: 1.9 W (no PD connected) 74 W (with 67 W PD connected)
  • Max Heat Dissipation: 6.5 BTU/h(no PD connected) 252.3 BTU/h(with 67 W PD connected)
  • SOFTWARE FEATURES
  • Transmission Method: Store-And-Forward
  • Advanced Functions:
  • Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1–4)
  • Priority Mode Button (Ports 1–2)
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
  • OTHERS
  • Certification: FCC, CE, RoHS
  • Package Contents: TL-SF1005P, Power Adapter, Installation Guide
  • Environment:
  • Operating Temperature: 0–40 ℃ (32–104 ℉)
  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
  • Warranty: 2 Years on part.
