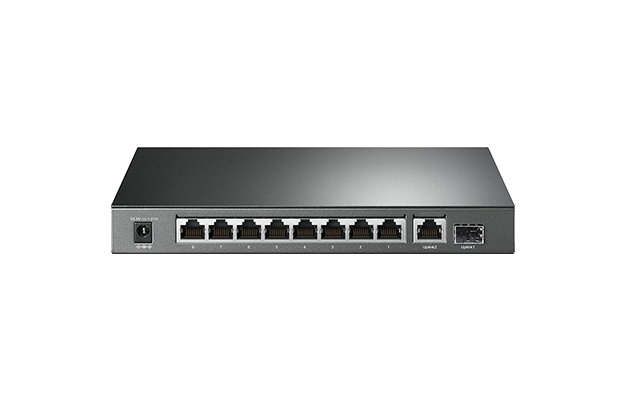

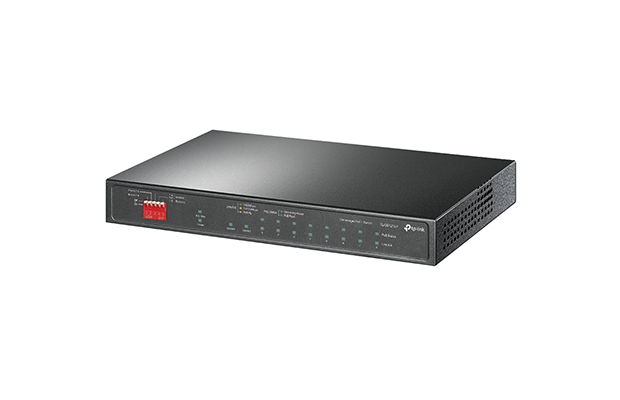

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+

$ 74.00 $ 69.00
  • Part Number: TL-SG1210P
  • 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
  • With 8 PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at compliant PDs and expands office network
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
  • Up to 250 m data and power transmission range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
  • Isolation Mode allows one-click client traffic separation for higher security and performance
  • Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
  • Easy to use, with no configuration and installation needed
  • Warranty: 3 Years on part.
Order Now

Specification

  • Part Number: TL-SG1210P
  • HARDWARE FEATURES
  • Interface:
  • - 8 PoE+ 10/100/1000Mbps RJ45 Ports
  • - 1 10/100/1000Mbps RJ45 Port
  • - 1 Gigabit SFP Slot
  • Network Media:
  • - 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • - EIA/TIA-568 100Ω STP (maximum 100m)
  • - 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • - EIA/TIA-568 100Ω STP (maximum 100m)
  • - 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • - EIA/TIA-568 100Ω STP (maximum 100m)
  • - 1000BASE-X MMF, SMF
  • Fan Quantity: Fanless
  • Physical Security Lock: Yes
  • Power Supply: External Power Adapter(Output: 53.5VDC / 1.31A)
  • Packet Forwarding Rate: 14.88 Mpps
  • PoE+ Ports(RJ45):
  • - Standard: 802.3at/802.3af compliant
  • - PoE Ports: Port1- Port 8
  • - PoE Power Budget: 63W
  • Mac Address Table: 4K
  • Jumbo Frame: 16 KB
  • Switching Capacity: 20 Gbps
  • Dimensions ( W x D x H ): 209 × 126 × 26 mm
  • Max Power Consumption: 7.0 W (220/50Hz. no PD connected), 77.24 W (220/50Hz. with 63W PD connected)
  • Max Heat Dissipation: 23.87 BTU/h (no PD connected), 263.39 BTU/h (with 63W PD connected)
  • SOFTWARE FEATURES
  • Advanced Features:
  • - Compatible With IEEE 802.3af/at Compliant PDs
  • - EEE802.3x Flow Control
  • - 802.1p/DSCP QoS
  • - IGMP Snooping
  • - Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
  • - Priority Mode Button (Ports 1–2)
  • - Isolation Mode Button (Ports 1–4 / 5-8)
  • - PoE Auto Recovery (Ports 1-8)
  • Transmission Method:Store-And-Forward
  • OTHERS
  • Certification: CE, FCC, RoHS
  • Package Contents: TL-SG1210P, Power Adapter, Installation Guide
  • Environment:
  • - Operating Temperature: 0°C~40°C (32°F~104°F)
  • - Storage Temperature: -40°C~70°C (-40°F~158°F)
  • - Operating Humidity: 10% ~ 90% non-condensing
  • - Storage Humidity: 5%~90% non-condensing
  • Warranty: 3 Years on part.
