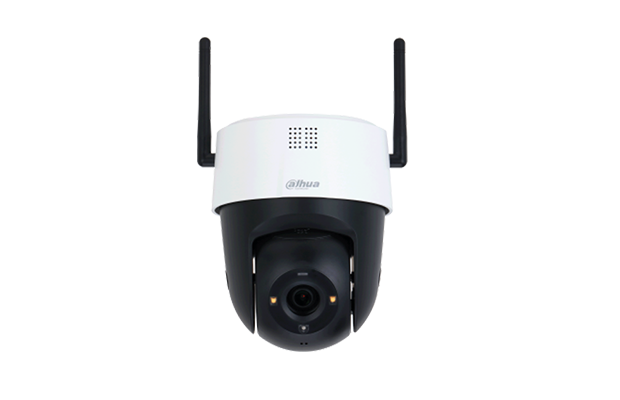

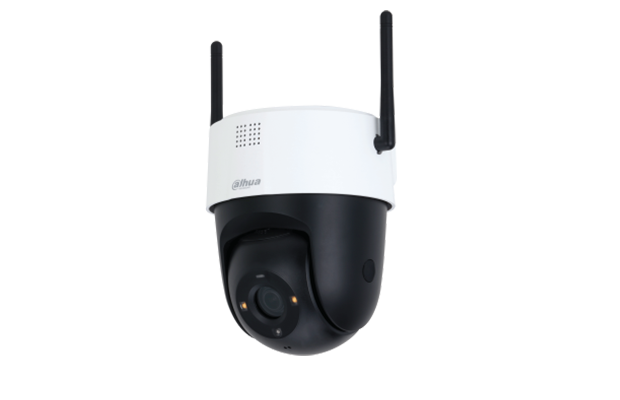

Dahua SD2A200-GN-AW-PV 2MP IR and White Light WIFI Full-color Network PT Camera

~~$ 78.00~~ $ 73.00

Part Number: SD2A200-GN-AW-PV
1/2.8" 2Megapixel STARVIS™ CMOS
>Max. 25/30 fps@2 MP
Human detection
Tripwire, intrusion
H.265 encoding
Wi-Fi
Warranty: 1 Year on part
*** Not included MicroSD Card

Order Now

Specification

Part Number: SD2A200-GN-AW-PV
Camera
Image Sensor: 1/2.8" CMOS
Pixel: 2 MP
Max. Resolution: 1920 (H) × 1080 (V)
ROM: 128 MB
RAM: 128 MB
Electronic Shutter Speed: 1/3 s–1/100,000 s
Scanning System: Progressive
Min. Illumination: Color: 0.05 lux@F2.0; B/W: 0.005 lux@F2.0; 0 lux (IR/white light on)
Illumination Distance: 30 m (98.42 ft) (IR); 30 m (98.42 ft) (white light)
Illuminator On/Off Control: Manual; auto; off
Illuminator Number: 1 (IR light); 2 (white light).
Lens
Focal Length: 4.0 mm
Max. Aperture: F2.0
Field of View: H: 86.8°; V: 47.1°; D: 102.2°
Close Focus Distance: 0.6 m (1.97 ft)
Iris Control: Fixed
DORI Distance:
Detect: 53.6 m (175.85 ft)
Observe: 21.4 m (70.21 ft)
Recognize: 10.7 m (35.10 ft)
Identify: 5.4 m (17.72 ft)
PTZ
Pan/Tilt Range: Pan: 0° to 345°; Tilt: 0° to +80°
Manual Control Speed: Pan: 0.1°–74°/s; Tilt: 0.1°–36.4°/s
Preset Speed: Pan: 62°/s; Tilt: 36.3°/s
Preset: 300
Power-off Memory: Yes
Idle Motion: Preset
Smart Event
IVS: Tripwire; intrusion
Active Deterrence
Light Warning: White light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low
Sound Warning: Sound warning alarm: Customizable; Alarm duration: 10 s, 20 s, 30 s
Video
Video Compression: Smart H.265+; H.265; Smart H.264+; H.264; H.264B; MJPEG (Sub Stream 1)
Streaming Capability: 2 Streams
Resolution: 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate
Main stream: 1080p/1.3M/720p (1–25/30 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Bit Rate Control: VBR; CBR
Video Bit Rate: H.264: 32 kbps–8192 kbps; H.265: 32 kbps–8192 kbps
Day/Night: Auto (ICR); Color; B/W
BLC: Yes
WDR: DWDR
HLC: Yes
White Balance: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural; street lamp
Gain Control: Auto; Manual
Noise Reduction: 2D NR; 3D NR
Motion Detection: Yes
Image Rotation: 180°
S/N Ratio: ≥ 55 dB
Audio
Audio Compression: G.711a; G.711Mu; G.726; G722.1; G.729; MPEG2-Layer2; G723
Network
Network Port: RJ-45 (10/100 Base-T)
Wi-Fi: Yes
Wi-Fi–Wireless Standard: 802.11n; 802.11g; IEEE802.11b
Wi-Fi–Wireless Transmission Rate: 150 Mbps
Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; SSL; FTP; ARP; RTCP; RTP; IP Filter; RTMP; TCP
Interoperability: ONVIF Profile S&G&T; CGI
Streaming Method: Unicast; Multicast
User/Host: 20
Storage: FTP; Micro SD card (512 GB)
Browser: IE 7 and later versions; Chrome 42 and earlier versions; Firefox 52 and earlier versions; Safari.
Management Software: Smart PSS; DMSS; player; configtool; NVR; Smart Player
Mobile Client: iOS; Android; iPhone; iPad; Windows Phone
Certification
Certifications: CE: EN55032/EN55024/EN50130-4; FCC: Part15 subpartB, ANSI C63.4-2014
Port
Audio Input: 1 channel (bulit-in MIC)
Audio Output: 1 channel (bulit-in Speaker)
Audio I/O: 1/1
Two-way Audio: Yes
Alarm Linkage: Capture; preset; recording; audio; sending email
Alarm Event: Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection
Power
Power Supply: 12 VDC, 1.5 A (± 10%)
Power Consumption: Basic: 3.5 W; Max.: 11 W (illuminator)
Environment
Operating Temperature: –30 °C to +55 °C (–22 °F to +131 °F)
Operating Humidity: ≤ 95% RH
Protection: IP66; TVS 2000 V lightning proof; surge protection; voltage transient protection
Construction
Product Dimensions: 146.5 mm × Φ118.0 mm (5.77" × Φ4.65")
Net Weight: 0.5 kg (1.10 lb)
Gross Weight: 1 kg (2.20 lb).
