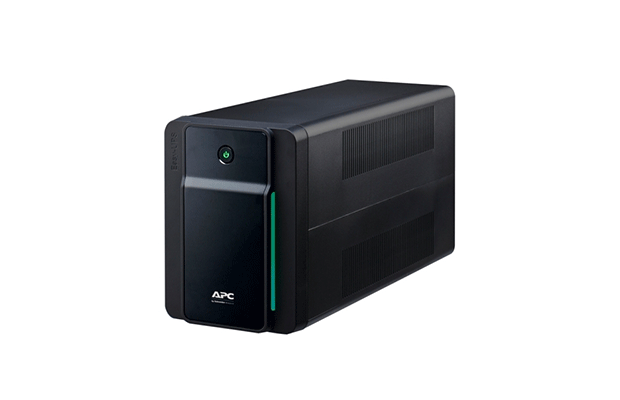

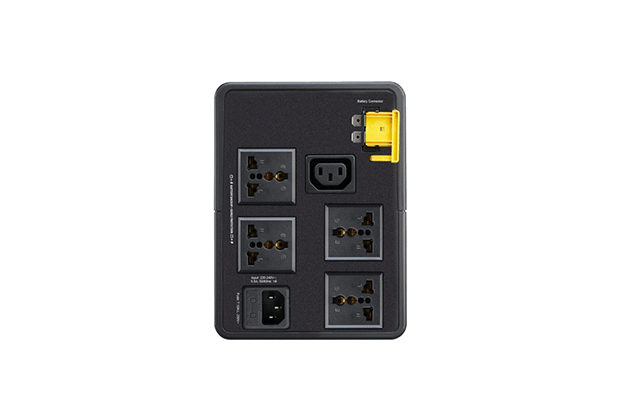

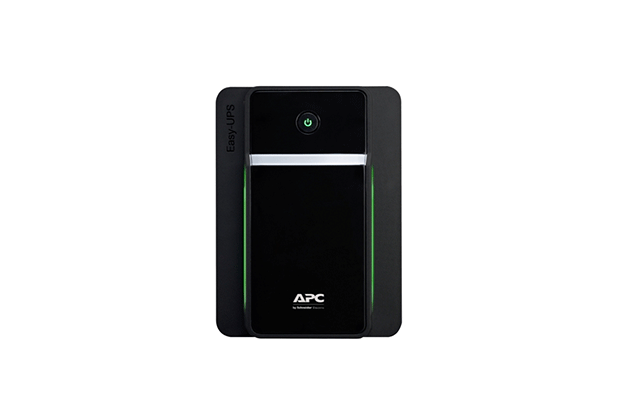

APC Easy UPS BVX 1200VA, 230V, AVR, Universal Sockets (BVX1200LI-MS)

$ 133.00 $ 127.00
  • Part Number: BVX1200LI-MS
  • Max Configurable Power (Watts): 650 Watts / 1.2kVA
  • Output Frequency (sync to mains): 50/60 Hz +/- 1 Hz Sync to mains
  • Topology: Line interactive
  • Waveform type: Stepped approximation to a sinewave
  • Transfer Time: 6 ms typical : 10 ms maximum
  • Input frequency: 50/60 Hz +/- 5 Hz Auto-sensing
  • Input voltage range for main operations: 140 - 300 (230 V) ACV
  • Number of Power Cords: 1
  • Input Power Factor at Full Load: 0.51
  • Warranty: 2 years repair or replace

Specification

  • Part Number: BVX1200LI-MS
  • Output
  • Max Configurable Power (Watts): 650 Watts / 1.2kVA
  • Output Frequency (sync to mains): 50/60 Hz +/- 1 Hz Sync to mains
  • Topology: Line interactive
  • Waveform type: Stepped approximation to a sinewave
  • Transfer Time: 6 ms typical : 10 ms maximum
  • Input
  • Input frequency: 50/60 Hz +/- 5 Hz Auto-sensing
  • Input voltage range for main operations: 140 - 300 (230 V) ACV
  • Number of Power Cords: 1
  • Input Power Factor at Full Load: 0.51
  • Batteries & Runtime
  • Battery type: Lead-acid battery
  • Typical recharge time: 8hour(s)
  • Nominal Battery Voltage: 12 V
  • Expected Battery Life (years): 2 - 3
  • Battery Volt-Amp-Hour Capacity: 108
  • Communications & Management
  • Control panel: LED Status display with on line : on battery
  • Audible Alarm: Alarm when on battery : distinctive low battery alarm
  • Surge Protection and Filtering
  • Surge energy rating: 273Joules
  • Physical
  • Maximum Height: 190MM, 19.0CM
  • Maximum Width: 140MM, 14.0CM
  • Maximum Depth: 390MM, 39.0CM
  • Net Weight: 7.5KG
  • Shipping weight: 8.5KG
  • Shipping Height: 297MM, 29.7CM
  • Shipping Width: 235MM, 23.5CM
  • Shipping Depth: 495MM, 49.5CM
  • Color: Black
  • SCC Codes: 10731304404375
  • Environmental
  • Operating Temperature: 0 - 40 °C
  • Operating Relative Humidity: 0 - 95 (Non-condensing) %
  • Operating Elevation: 0 - 3000meters
  • Storage Temperature: -15 - 40 °C
  • Storage Relative Humidity: 0 - 95 (Non-condensing) %
  • Storage Elevation: 0 - 3000meters
  • Audible noise at 1 meter from surface of unit: 40.0dBA
  • Protection Class: IP20
  • Conformance
  • Approvals: CB , CE, EN/IEC 62040-1, EN/IEC 62040-2
  • Equipment protection policy: Lifetime : 50000 euros
  • Warranty: 2 years repair or replace
