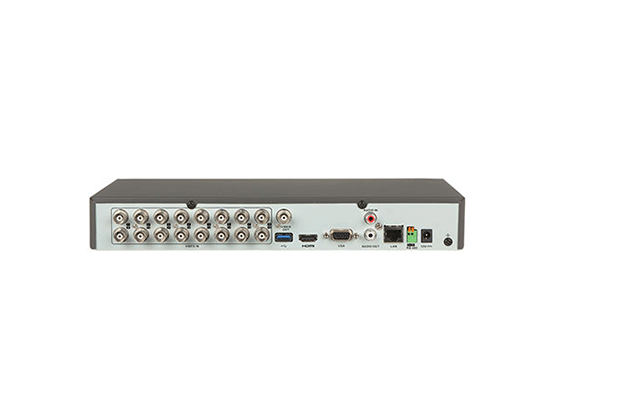

Hikvision IDS-7216HQHI-M1/E 16-ch 1080p 1U H.265 AcuSense DVR

~~$ 155.00~~ $ 135.00

Part Number: IDS-7216HQHI-M1/E
Deep learning-based motion detection 2.0 for all analog channels
Deep learning-based perimeter protection
Efficient H.265 pro+ compression technology
Encoding ability up to 1080p @ 15 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 24 network cameras can be connected.
Warranty: 1 Year on part

Order Now

Specification

Part Number: IDS-7216HQHI-M1/E
Motion Detection 2.0
Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Perimeter Protection
Line Crossing Detection/Intrusion Detection: 4-ch
Recording
Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution: When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate
Main stream: When 1080p Lite mode is not enabled: 4 MP lite/1080p@15 fps; 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode is enabled: 4 MP lite@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
Video Bitrate: 32 Kbps to 6 Mbps
Dual-Stream: Support
Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bitrate: 64 Kbps
Video And Audio
IP Video Input: 2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input: 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Incoming Bandwidth: 96 Mbps
HDTVI Input: 3K@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
AHD Input: 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI Input: 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
CVBS Input: PAL/NTSC
HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ) 16-ch via coaxial cable
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback: 16-ch
Network
Remote Connection: 128
Total Bandwidth: 128 Mbps
Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface: 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA: 1 SATA interface
Capacity: Up to 10TB capacity for each disk
USB Interface: Real panel: 2 × USB 2.0
Alarm In/Out: N/A
General
Power Supply: 12 VDC, 1.9 A
Consumption: ≤ 13 W
Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity: 10% to 90%
Dimension (W × D × H): 265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch) ≤ 1.7 kg (3.7 lb)
Warranty: 1 Year on part
