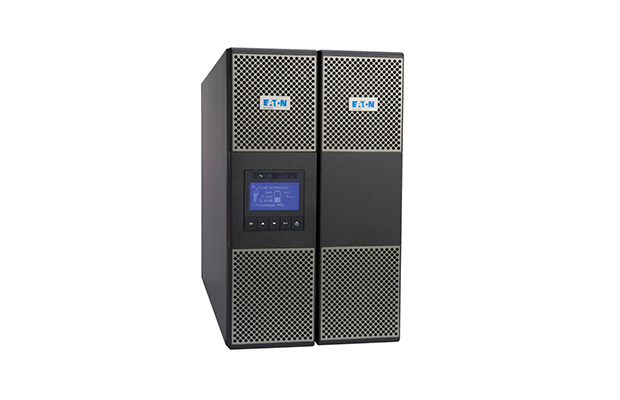

Eaton UPS 9PX 8KVA R/T, 6U With Rack Mounting Kit (9PX8KiRT)

~~$ 2,930.00~~ $ 2,915.00

Part Number: Eaton 9PX6KIRTN
Product Name: Eaton 9PX UPS
Rating (VA / W): 8kVA/7200W
VA rating: 8 kVA
Form factor: Rack/ Tower
Input voltage range: 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz
Frequency: 50 / 60 Hz
Output voltage: 208 V
Output frequency: 50/60 Hz
Product Weight: 205 lb
Receptacle: (3) L6-30R, Hardwired
Warranty: 2-years on Part.

Order Now

Specification

Part Number: Eaton 9PX8KiRT
GENERAL SPECIFICATIONS
UPC: 743172043504
Product Length/Depth: 30 in
Product Height: 10.2 in
Product Width: 17.3 in
Product Weight: 205 lb
BATTERY
Runtime graph: View runtime graph
Battery management: ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Battery replacement: Hot-swappable internal batteries and extended battery modules (EBMs)
Battery type: Sealed, lead-acid
Extended battery capability: Add up to 5 extended battery modules (EBM). Part number 9PXEBM240RT. Add up to 12 EBMs with 240V supercharger module SC240RT.
ELECTRICAL OUTPUT
Receptacle: (3) L6-30R, Hardwired
Topology: Online/Double-conversion
Wattage: 7.2 kW
VA rating: 8 kVA
Output waveform: True sine wave
Voltage: 208 V
Output power factor: 0.9
Output nominal voltage: 208V default (200/208/220/230/240/250V)
Output voltage range: ±1% steady-state
Output frequency: 50/60 Hz
ELECTRICAL INPUT
Input connection: Hardwired
Input nominal voltage: 208V default (200/208/220/230/240/250V)
Input frequency range: 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz
Input power factor: >0.99 typical
COMMUNICATIONS
Communication: Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot
Expansion slots: (1) Mini-Slot (MS) expansion port with Gigabit Network Card (NETWORK-M2) included
Ethernet interface: Yes
Includes network card: Yes
Software compatibility: Intelligent Power Software Suite
User interface: Graphical display, 5-button programmable menu
ENVIRONMENTAL
Altitude: <1000m for nominal power, 10% power degrading every 1000m (up to 3000m)
BTU Rating: Online: 1760, Battery: 2375
Noise level: <45 dB at 1 meter
Relative humidity: 0-95% non-condensing
Temperature range: 0° to 40°C (32° to 104°F)
ADDITIONAL SPECIFICATIONS
Special features: Gigabit Network Card (NETWORK-M2) included
Form factor: Rack/tower
Rack size: 6U
Rack mounting kit: Yes
Efficiency: 94%
Package contents:
- 9PX8KPM 8 kVA 3U UPS power module
- 9PXEBM240RT 3U extended battery module
- MBP11K208 rear-mount maintenance bypass
- Gigabit Network Card (Network-M2)
- 4-post rail kit
- User manual
- Quick start guide
- Tower pedestals
- Intelligent Power Software Suite CD
- RS-232 serial cable
- USB cable
- Cable gland for hardwire connection
- Phillips head screw driver
Internal bypass: Yes
Warranty: 2-years on Part.
