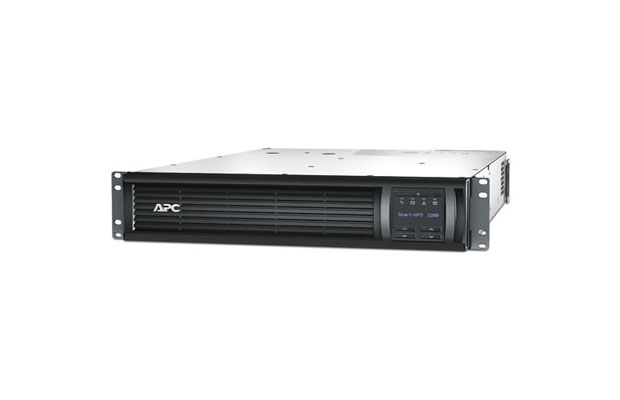

APC Smart-UPS 2200VA LCD RM 2U 230V SMT2200RMI2U

$ 865.00 $ 850.00
  • Part Number: SMT2200RMI2U
  • Brand Name: APC
  • Warranty: 3 Years repair or replace (excluding battery) and 2 Years for battery.

Specification

  • Part Number: SMT2200RMI2U
  • Output power capacity 1.98 KWatts / 2.2 kVA
  • Max Configurable Power (Watts) 1.98 KWatts / 2.2 kVA
  • Nominal Output Voltage 230V
  • Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage
  • Output Voltage Distortion Less than 5% at full load
  • Output Frequency (sync to mains) 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz ominal
  • Topology Line Interactive
  • Waveform type Sine wave

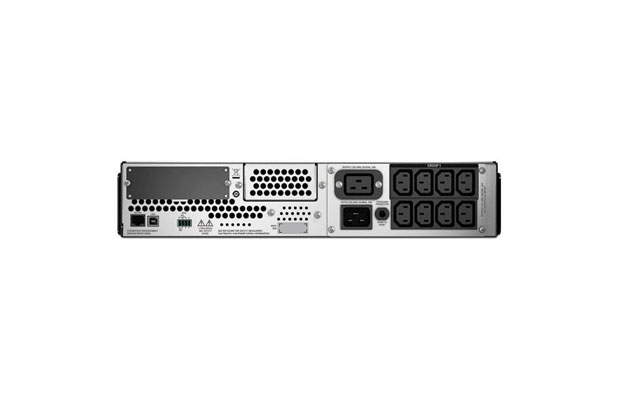

  • Output Connections
  • (8) IEC 320 C13 (Battery Backup)
  • (3) IEC Jumpers (Battery Backup)
  • (1) IEC 320 C19 (Battery Backup)
  • Transfer Time 4ms typical : 8ms maximum
  • Nominal Input Voltage 230V
  • Input frequency 50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
  • Cord Length 2meters
  • Input voltage range for main operations 160 - 286V
  • Input voltage adjustable range for mains operation 151 - 302V
  • Number of Power Cords 1
  • Other Input Voltages 220, 240
  • Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte :leakproof
  • Typical recharge time 3hour(s)
  • Replacement Battery RBC43
  • Expected Battery Life (years) 3 - 5
  • RBC Quantity 1
  • Warranty: 3 Years repair or replace (excluding battery) and 2 Years for battery.
