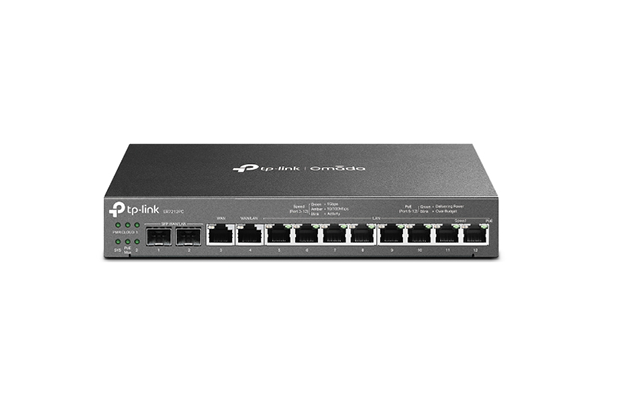

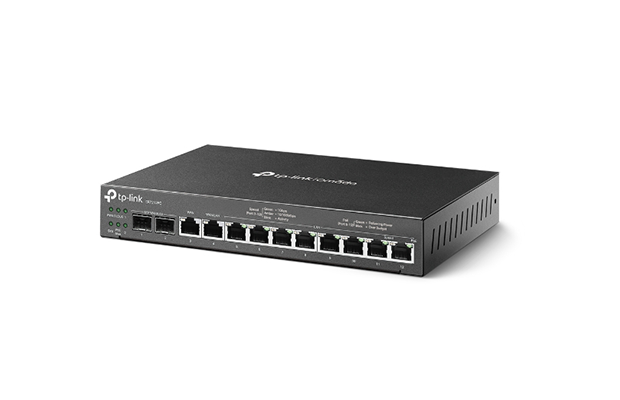

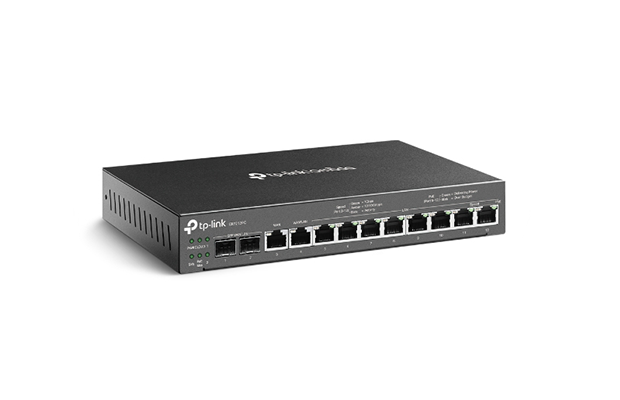

TP-Link ER7212PC Omada 3-in-1 Gigabit VPN Router

~~$ 188.00~~ $ 179.00

Part Number: ER7212PC
3-in-1 Router: Integrates router, PoE+ output, and Omada centralized management ability altogether. Up to 10 EAPs can be centrally managed.
Professional Hardware: Dual-Core CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.
Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.
110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*.
Highly Secure VPN: Supports up to 20 x LAN-to-LAN IPsec VPN, 16 x OpenVPN, and 16 x L2TP/PPTP VPN connections.
Easy Installation: Fanless and compact design for desktop and wall mounting.
Robust Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.
Centralized Management: On-premises management to locally monitor and manage devices securely or monitor and manage devices with Omada app or Web UI.
Warranty: 3 Year on part.

Order Now

Specification

Part Number: ER7212PC
SECURITY
Access Control: Source/Destination IP Based Access Control
Filtering: URL Filtering
ARP Inspection: -
Attack Defense:
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols:
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
Interface:
• 2 Gigabit SFP WAN/LAN ports
• 1 Gigabit WAN port
• 1 Gigabit LAN/WAN port
• 8 Gigabit LAN ports
Network Media:
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity: Fanless
Button: Reset Button
Power Supply: 53.5VDC/2.43A Adapter
PoE Budget: 8 ports PoE+ output, 110 W PoE Budget
Flash: 8Mb Nor + 4 GB EMMC
DRAM: 1 GB DDR3
LED: PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions ( W x D x H ): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection: 4 kV surge protection
Enclosure: Steel
Mounting: Desktop/Wall-mount
Max Power Consumption:
• 133.2W with PoE Max
• 13.88W without PoE
PERFORMANCE
Concurrent Session: 24,980
New Sessions /Second: 1,900
NAT (Static IP): 935.5 Mbps / 942.1 Mbps
NAT(DHCP): 940.2 Mbps / 941.7 Mbps
NAT(PPPoE): 913.1 Mbps / 935.2 Mbps
NAT (L2TP): 545.0 Mbps / 912.7 Mbps
NAT (PPTP): 523.0 Mbps / 912.8 Mbps
IPsec VPN Throughput (AES256): 168.5 Mbps
IPsec VPN Throughput: AES256: 168.5 Mbps
OpenVPN 34 Mbps
L2TP VPN Throughput
• Unencrypted: 845.3 Mbps
• Encrypted: 333.2 Mbps
PPTP VPN Throughput:
• Unencrypted: 1012.6 Mbps
• Encrypted: 401.4 Mbps
66 Byte Packet forwarding rate: 154,069 pps / 156,977 pps
1,518 Byte Packet forwarding rate: 81,193 pps / 81,193 pps
BASIC FUNCTIONS
WAN Connection Type:
• Static IP
• Dynamic IP
• PPPoE
• PPTP
• L2TP
MAC Clone: Modify WAN MAC Address
DHCP:
• DHCP Server
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
IPv6: support
VLAN: 802.1Q VLAN
IPTV: IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
ACL: IP/Port/Protocol/Domain Name Filtering
Advanced Routing:
• Static Routing
• Policy Routing
Bandwidth Control: IP/Port-based Bandwidth Control
Load Balance:
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup
• Online Detection
NAT:
• Multi-Net NAT
• Virtual Server
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit: IP-based Session Limit
VPN
SSL VPN: -
IPsec VPN:
• 20 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• SHA1, SHA2 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN:
• PPTP VPN Server
• PPTP VPN Client (10)
• 16 Tunnels
• PPTP with MPPE Encryption
L2TP VPN:
• L2TP VPN Server
• L2TP VPN Client (10)
• 16 Tunnels
• L2TP over IPSec
OpenVPN:
• OpenVPN Server
• OpenVPN Client (10)§
• 16 OpenVPN Tunnels
AUTHENTICATION
Web Authentication:
• No Authentication
• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
MANAGEMENT
Omada App: Yes
Centralized Management: Management of up to 2 Omada switches, and 10 Omada access points
Cloud Access: Yes
Service: Dynamic DNS (Dyndns, No-IP)
Maintenance:
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features:
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• Management of up to 2 Omada switches and 10 Omada access points
OTHERS
Certification: CE, FCC, RoHS
Package Contents:
• ER7212PC
• Power Adapter
• Power Cord
• Quick Installation Guide
System Requirements:
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
• MAC OS, NetWare, UNIX or Linux
Environment:
• Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
Warranty: 3 Year on part.
