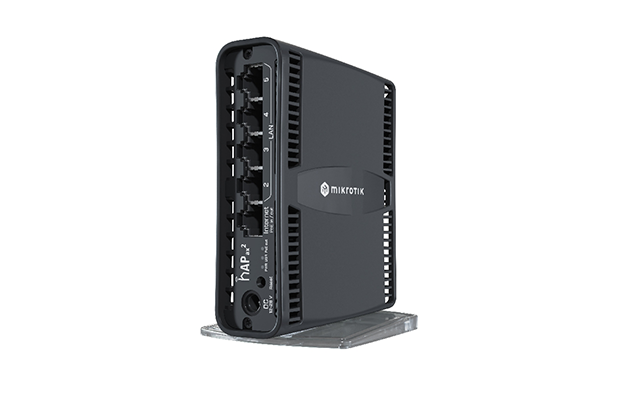

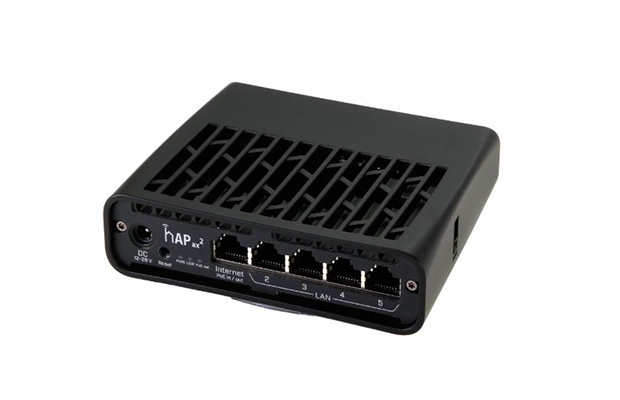

MikroTik Router hAP ax²​​ (C52iG-5HaxD2HaxD-TC)

$ 134.00 $ 129.00
  • Part Number: C52iG-5HaxD2HaxD-TC
  • CPU nominal frequency: 864 MHz
  • RouterOS license: 4
  • Size of RAM: 1 GB
  • Storage size: 128 MB
  • Wireless 2.4 GHz Max data rate: 574 Mbit/s
  • Wireless 5 GHz generation: Wi-Fi 6
  • 10/100/1000 Ethernet ports: 5
  • Number of 1G Ethernet ports with PoE-out: 1
  • Warranty: 1 Year on part.
Order Now

Specification

  • Part Number: C52iG-5HaxD2HaxD-TC
  • Specifications
  • Architecture: ARM 64bit
  • CPU: IPQ-6010
  • CPU core count: 4
  • CPU nominal frequency: 864 MHz
  • Switch chip model: IPQ-6010
  • RouterOS license: 4
  • Operating System: RouterOS v7
  • Size of RAM: 1 GB
  • Storage size: 128 MB
  • Storage type: NAND
  • MTBF: Approximately 100'000 hours at 25C
  • Tested ambient temperature: -40°C to 50°C
  • IPsec hardware acceleration: Yes
  • Wireless capabilities
  • Wireless 2.4 GHz Max data rate: 574 Mbit/s
  • Wireless 2.4 GHz number of chains: 2
  • Wireless 2.4 GHz standards: 802.11b/g/n/ax
  • Antenna gain dBi for 2.4 GHz: 4
  • Wireless 2.4 GHz chip model: QCN-5022
  • Wireless 2.4 GHz generation: Wi-Fi 6
  • Wireless 5 GHz Max data rate: 1200 Mbit/s
  • Wireless 5 GHz number of chains: 2
  • Wireless 5 GHz standards: 802.11a/n/ac/ax
  • Antenna gain dBi for 5 GHz: 4.5
  • Wireless 5 GHz chip model: QCN-5052
  • Wireless 5 GHz generation: Wi-Fi 6
  • WiFi speed: AX1800
  • Ethernet
  • 10/100/1000 Ethernet ports: 5
  • Number of 1G Ethernet ports with PoE-out: 1
  • Powering
  • Number of DC inputs: 2 (PoE-IN, DC jack)
  • DC jack input Voltage: 12-28 V
  • Max power consumption: 27 W
  • Max power consumption without attachments: 12 W
  • Cooling type: Passive
  • PoE in    Passive: PoE
  • PoE in input Voltage: 18-28 V
  • PoE-out
  • PoE-out ports: Ether 1
  • PoE out    Passive: PoE
  • Max out per port output (input 18-30 V): 600 mA
  • Max total out (A): 0.6 A
  • Total output current: 0.6
  • Total output power: 16.8W
  • Certification & Approvals
  • Certification: CE, FCC, IC, EAC, ROHS
  • IP: 20
  • Warranty: 1 Year on part.
