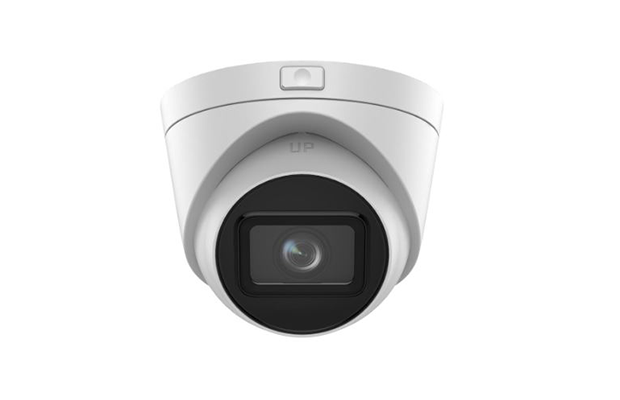

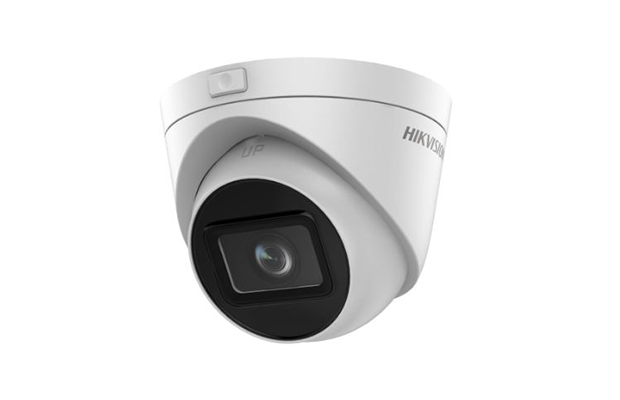

Hikvision DS-2CD1H53G0-IZ 5MP Motorized Varifocal Turret Network Camera

~~$ 112.00~~ $ 105.00

Part Number: DS-2CD1H53G0-IZ
High quality imaging with 5 MP resolution
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to 120 dB WDR
Up to 256 GB memory card slot for storage
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range
Warranty: 1 Year on part.

Order Now

Specification

Part Number: DS-2CD1H53G0-IZ
Camera
Image Sensor: 1/2.7" Progressive Scan CMOS
Max. Resolution: 2560 × 1920
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
Lens
Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV: 2.8 to 12 mm: horizontal FOV 96° to 29°, vertical FOV 69° to 22°, diagonal FOV 131° to 37°
Lens Mount: Ø14
Iris Type: Fixed
Aperture: F1.6
Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 30 m
IR Wavelength: 850 nm
Video
Main Stream
50 Hz: 20 fps (2560 × 1920)
25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1920)
30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main profile
Region of Interest (ROI): 1 fixed region for main stream
Audio
Audio Compression: -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate: -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate: -S: 8 kHz/16 kHz
Environment Noise Filtering: -S: Yes
Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface, ISAPI
User/Host:
-Up to 32 users. 3 levels: administrator, operator and user
-3 user levels: administrator, operator, and user
Client: iVMS-4200, Hik-Connect
Web Browser:
-Plug-in required live view: IE 10+
-Plug-in free live view: Chrome 57.0+, Firefox 52.0+
-Local service: Chrome 57.0+, Firefox 52.0+
Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch: Auto, Schedule, Day, Night
Wide Dynamic Range (WDR): 120 dB
Image Enhancement: BLC, 3D DNR
Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
Audio: -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm: -S: 1 input,1 output (max. 12 VDC, 30 mA)
Reset Key: Yes
Event
Basic Event: Motion detection, video tampering, exception
Linkage: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture
General
Power: 12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W
Material: Cover: plastic, main body: metal
Dimension: Ø129.4 mm × 116.4 mm (Ø5.1" × 4.6")
Package Dimension: 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight: Approx. 590 g (1.3 lb.)
With Package Weight: Approx. 900 g (2.0 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: English, Ukrainian
General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
EMC FCC SDoC: 47 CFR Part 15, Subpart B;
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014;
RCM: AS/NZS CISPR 32: 2015;
IC VoC: ICES-003: Issue 7;
KC: KN 32: 2015, KN 35: 2015
Safety UL: UL 62368-1;
CB: IEC 62368-1:2014+A11;
CE-LVD: EN 62368-1:2014/A11:2017;
BIS: IS 13252(Part 1):2010/IEC 60950-1: 2005
Environment CE-RoHS: 2011/65/EU;
WEEE: 2012/19/EU;
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
Warranty: 1 Year on part.
