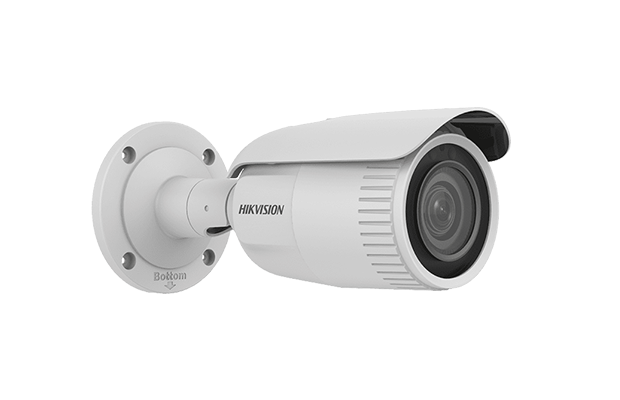

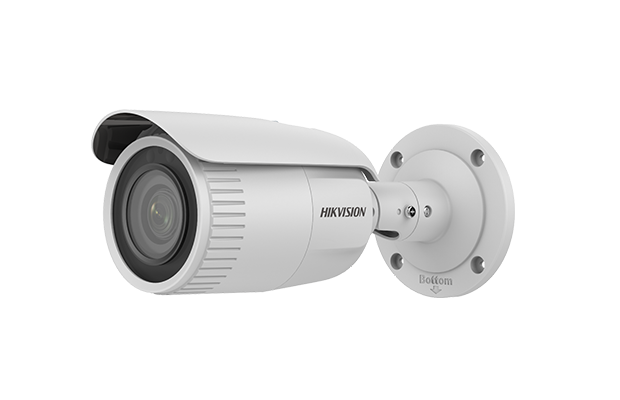

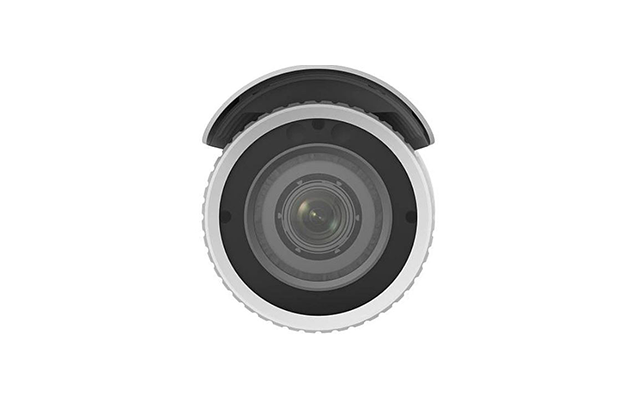

Hikvision DS-2CD1643G0-IZ 4MP Varifocal Bullet Network Camera

~~$ 100.00~~ $ 95.00

Part Number: DS-2CD1643G0-IZ
High quality imaging with 4 MP
resolution 2560 × 1440
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to 120 dB WDR
Up to 256 GB SD card slot for storage
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range
Warranty: 1 Year on part.

Order Now

Specification

Part Number: DS-2CD1643G0-IZ
Camera
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed: 1/3 s to 1/100,000 s
Wide Dynamic Range: 120 dB
Day & Night: IR Cut Filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
Lens
Lens Type: Varifocal lens, motor-driven lens, 2.8 to 12 mm
Focal Length & FOV: 2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 55° to 18°, diagonal FOV 122° to 36°
Lens Mount: Ø14
Iris Type: Fixed
Aperture: F1.6
Illuminator
IR Wavelength: 850 nm
IR Range: Up to 50 m
Video
Main Stream
50 Hz: 20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440)
30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Region of Interest (ROI): 1 fixed region for main stream
Audio
Audio Compression: -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate: -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate: -S: 8 kHz/16 kHz
Environment Noise Filtering: -S: Yes
Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface, ISAPI
User/Host: Up to 32 users. 3 levels: administrator, operator and user
Client: iVMS-4200, Hik-Connect
Web Browser: Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch: Auto, Schedule, Day, Night
Image Enhancement: BLC, 3D DNR
Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
Audio: -S:
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm: -S: 1 input,1 output, max. 12 VDC, 30 mA
Reset Key: Yes
Event
Basic Event: Motion detection, video tampering alarm, exception
Linkage: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture
General
Power: 12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
Camera Material: Metal
Camera Dimension: Ø105 mm × 244.4 mm (Ø4.1" × 9.6")
Package Dimension: 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
Camera Weight: Approx. 1035 g (2.3 lb.)
With Package Weight: Approx. 1550 g (3.4 lb.)
Storage Conditions: -30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: English, Ukrainian
General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
EMC FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Electrical Safety Protection: IP67 (IEC 60529-2013)
Warranty: 1 Year on part.
