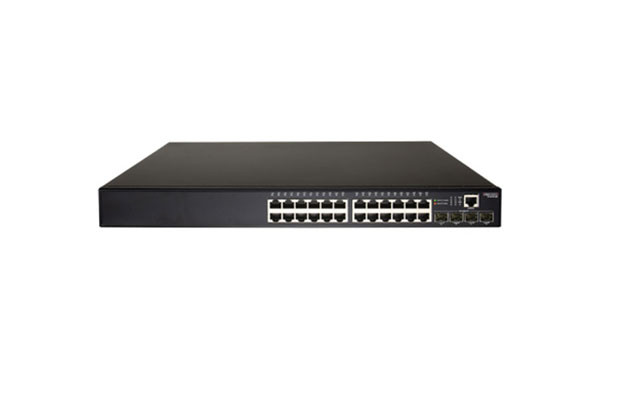

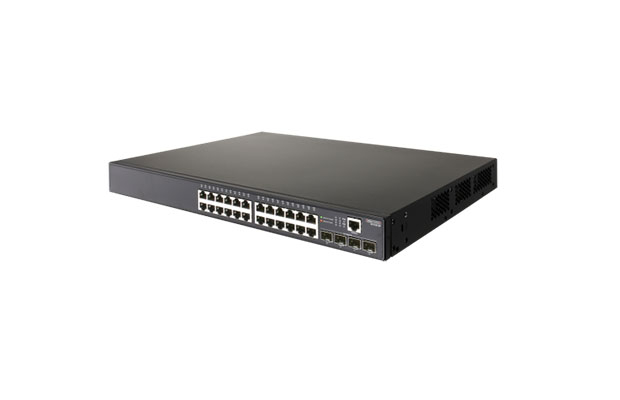

Edgecore ECS4100-28P 28Ports Gigabit PoE, 4Port 1G SFP Ports L2+ Switch

$ 1,040.00 $ 1,019.00
  • Part Number: ECS4100-28P
  • 24 x RJ-45 10/100/1000 Ports
  • 24 x PoE Ports
  • 4 x 1G SFP Uplink Ports
  • 1 x Console Port
  • PoE Power Budget: 190W (af/at)
  • 56 Gbps Switching Capacity
  • Support ecCLOUD
  • Warranty: 1-Year on part.
Order Now

Specification

  • Part Number: ECS4100-28P
  • 24 x RJ-45 10/100/1000 Ports
  • 24 x PoE Ports
  • 4 x 1G SFP Uplink Ports
  • 1 x Console Port
  • Support ecCLOUD
  • PoE Power Budget: 190W (af/at)
  • Auto disable aſter exceeding power budget
  • Dynamic power allocation
  • Switching Capacity: 56 Gbps
  • Forwarding Rate: 41.7 Mbps
  • Flash Memory: 32 MB
  • DRAM: 256 MB
  • Packet Buffer: 1.5 MB
  • MAC Address Table: 16 K
  • Jumbo Frames: 12 KB
  • Auto-negotiation, Auto-MDI/MDIX
  • Acoustics: 53 dB (A)
  • MTBF: 366,322 hrs
  • Rack Space: 19″
  • Dimension (WxDxH): 44 cm x 22 cm x 4.4 cm
  • Weight: 3.94kg.
