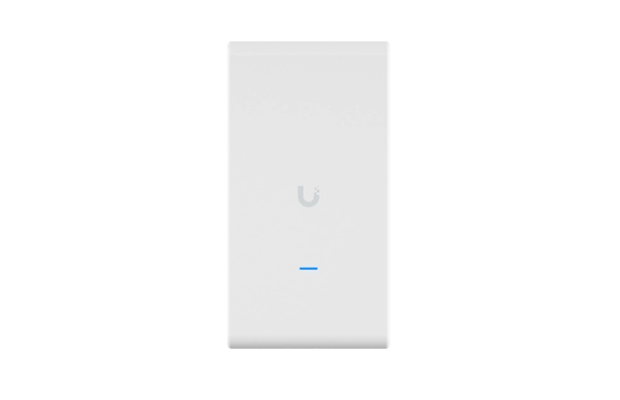

UbiquiTi U6 Mesh Pro (U6-Mesh-Pro)

~~$ 310.00~~ $ 295.00

Part Number: U6-Mesh-Pro
Indoor/outdoor WiFi 6 AP with 4 spatial streams
an integrated super antenna
Gigabit passthrough port
5 GHz: 2.4 Gbps (BW160)
2.4 GHz: 573.5 Mbps (BW40)
Warranty: 1 Year on part.

Order Now

Specification

Part Number: U6-Mesh-Pro
Overview
Dimensions: 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
WiFi Standard: WiFi 6
Spatial Streams: 4
Coverage Area: 185 m² (2,000 ft²)
Max. Client Count: 250+
Uplink: GbE

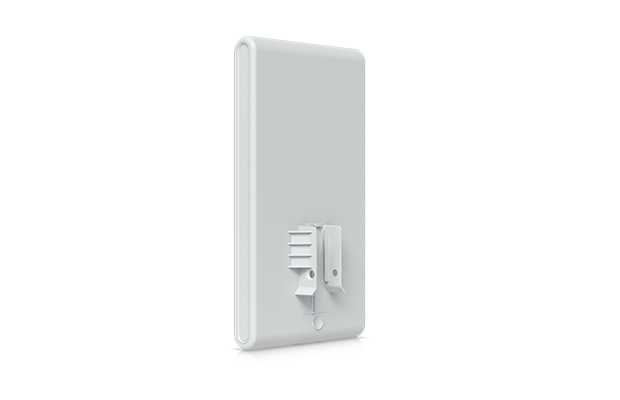

Mounting Locations: Wall, pole
Mounting Plate: Included mount
Weatherproofing: IPX6
Power Method: PoE
Performance
MIMO
5 GHz : 2 x 2 (DL/UL MU MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz : 2.4 Gbps (BW160)
2.4 GHz: 573.5 Mbps (BW40)
Antenna Gain
5 GHz : 8 dBi
2.4 GHz: 8 dBi
Max. TX Power
5 GHz : 27 dBm
2.4 GHz: 22 dBm
Max. BSSIDs: 8 per Radio
Supported Data Rates
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
Features
Wireless Meshing: Yes
Band Steering: Yes
802.11v BSS Transition Management: Yes
802.11r Fast Roaming: Yes
802.11k Radio Resource Management (RRM): Yes
Advanced Radio Management: Yes
Passpoint (Hotspot 2.0): Yes
Captive Hotspot Portal
Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes
Private Pre-Shared Key (PPSK): Yes
WiFi Speed Limiting: Yes
Client Device Isolation: Yes
WiFi Schedules: Yes
RADIUS over TLS (RadSec): Yes
Dynamic RADIUS-assigned VLAN: Yes
Hardware
Max. Power Consumption: 9W
Includes PoE Adapter: Yes
Supported Voltage Range: 42.5—57V DC
Networking Interface: (2) GbE RJ45 ports
Weight: 819 g (1.8 lb)
Pole Mount Diameter: 1–2.5" (25–63.5 mm)
Management: Ethernet, WiFi
Enclosure Material: UV-stabilized polycarbonate
Mount Material: Aluminum alloy, steel
LEDs
System: White/Blue
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
Certifications: CE, FCC, IC
Operating Frequency
US/CA: 2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
Worldwide: 2400 - 2483.5 MHz, 5150 - 5725 MHz
Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Warranty: 1 Year on part.
