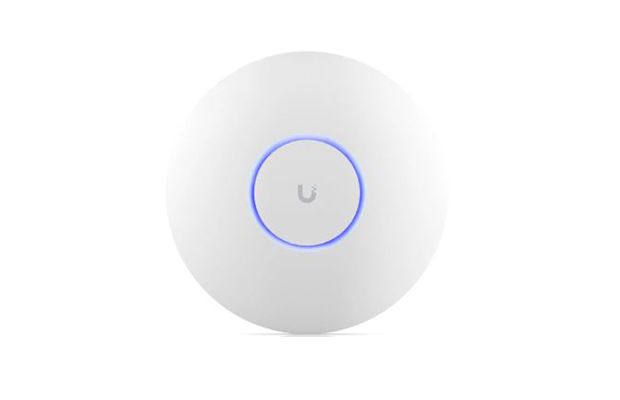

Ubiquiti U7-Pro-Max Ceiling-mounted WiFi 7 Access Point

~~$ 394.00~~ $ 385.00

Part Number: U7-Pro-Max
WiFi 7 with 6 GHz support
8 spatial streams
Real-time spectral analysis for enhanced channel selection*
160 m² (1,750 ft²) coverage
500+ connected devices
Powered using PoE+
2.5 GbE uplink
Warranty: 1 Year on part.
*** Not Included POE Adapter

Order Now

Specification

Part Number: U7-Pro-Max
Mechanical
Dimensions: Ø206 x 46 mm (Ø8.1 x 1.8")
Weight: 680 g (1.5 lb)
Enclosure material: Polycarbonate, aluminum
Mount material: Stainless steel (SUS304), galvanized steel (SGCC)
Hardware
Networking interface: (1) 1/2.5 GbE RJ45 port
Management interface: Ethernet
Power method: PoE+
Power supply: UniFi PoE switch
Supported voltage range: 44—57V DC
Max. power consumption: 25W
Max. TX power
2.4 GHz : 23 dBm
5 GHz : 29 dBm
6 GHz : 23 dBm
MIMO
2.4 GHz : 2 x 2 (DL/UL MU-MIMO)
5 GHz : 4 x 4 (DL/UL MU-MIMO)
6 GHz : 2 x 2 (DL/UL MU-MIMO)
Max. data rate
2.4 GHz : 688 Mbps (BW40)
5 GHz : 8.6 Gbps (BW240)
6 GHz : 5.7 Gbps (BW320)
Antenna gain
2.4 GHz : 4 dBi
5 GHz : 6 dBi
6 GHz : 5.9 dBi
LEDs: White/blue
Button: Factory reset

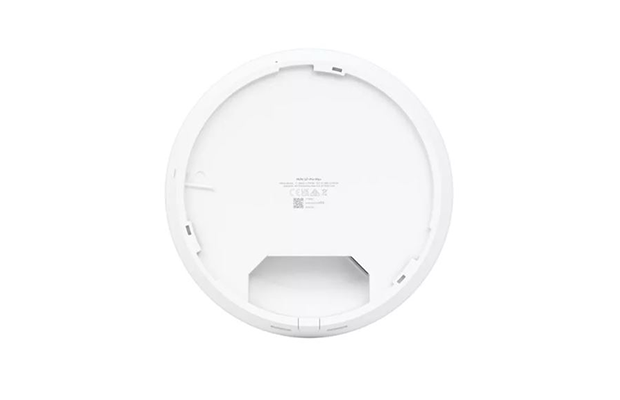

Mounting: Wall, ceiling (Included)
Ambient operating temperature: -30 to 50° C (-22 to 122° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Software
WiFi standards: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 500+
Supported Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11be (WiFi 7)
5 GHz : 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
6 GHz : 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network: Version 8.2.93 and later
Warranty: 1 Year on part
