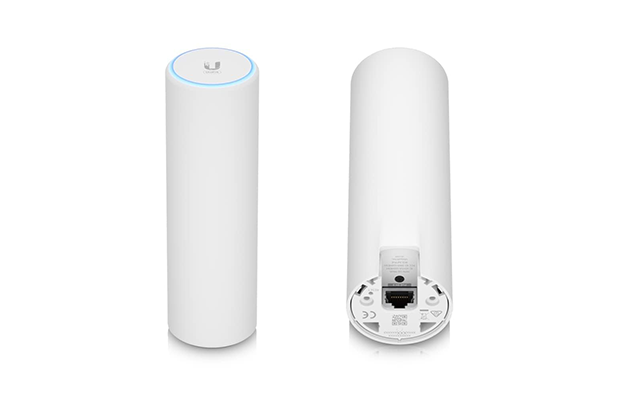

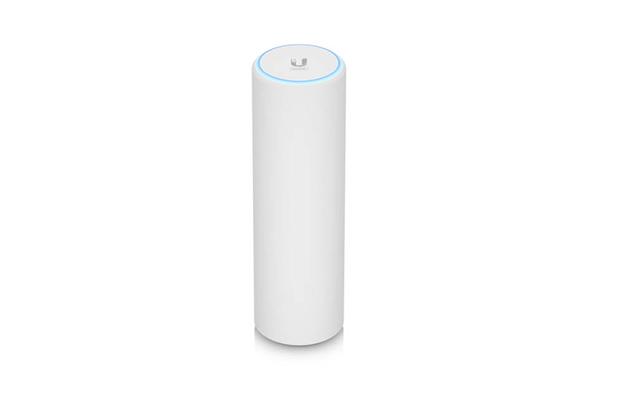

UniFi U6-Mesh, Sleek, indoor/outdoor WiFi 6 access point

~~$ 246.00~~ $ 235.00

Part Number: U6-MESH-US
WiFi 6
6 spatial streams
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE
GbE uplink
Warranty: 1 Year on part

Order Now

Specification

Part Number: U6-MESH-US
Mechanical
Dimensions: Ø48.5 x 159.5 mm (Ø1.9 x 6.3")
Weight: 400 g (14.1 oz)
Enclosure material: Polycarbonate, aluminum
Mount material: Polycarbonate
Weatherproofing: IPX5
Hardware
Networking interface: (1) GbE RJ45 port
Management interface: Ethernet, Bluetooth
Power method: PoE
Power supply: UniFi PoE switch, 48V, 0.32A PoE adapter (Included)
Supported voltage range: 44—57V DC
Max. power consumption: 11.4W
Max. TX power
2.4 GHz: 22 dBm
5 GHz: 26 dBm
6 GHz: –
MIMO
2.4 GHz: 2 x 2 (UL MU-MIMO)
5 GHz: 4 x 4 (DL/UL MU-MIMO)
6 GHz: –
Throughput rate
2.4 GHz: 573.5 Mbps
5 GHz: 4.8 Gbps
6 GHz: –
Antenna gain
2.4 GHz: 3 dBi
5 GHz: 5 dBi
6 GHz: –
LEDs: White/blue
Button: Factory reset
Mounting: Wall, desktop, pole (Included) Ceiling (Optional)
Ambient operating temperature: -30 to 60° C (-22 to 140° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Software
WiFi standards: 802.11a/b/g/n/ac/ax
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 300+
Zero wait DFS: Yes*
*Supported with upcoming firmware versions
Supported Data Rates:
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
UniFi Network: Version 6.2.51 and later
Warranty: 1 Year on part
