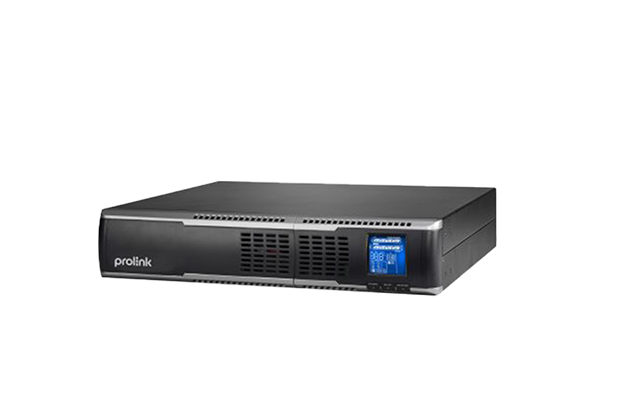

UPS PROLINK 3KVA PRO803-ERS, Online Rack mount

$ 540.00 $ 529.00
  • Part Number: PRO803-ERS
  • UPS Type: Rack / Tower
  • Phase: Single phase with ground
  • Rating (VA): 3000
  • Nominal Power (W): 2700
  • Standard Model Dimension (mm): 630 x 438 x 88 [2U] (D x W x H)
  • Weight (kg): 28
  • Warranty: 2 Years on part.
Order Now

Specification

  • Part Number: PRO803-ERS
  • GENERAL
  • UPS Type: Rack / Tower
  • Phase: Single phase with ground
  • Rating (VA): 3000
  • Nominal Power (W): 2700
  • Standard Model Dimension (mm): 630 x 438 x 88 [2U] (D x W x H)
  • Weight (kg): 28
  • INPUT
  • Connection Type: IEC 320-C20
  • Nominal Voltage: 200/208/220/230/240 VAC
  • Voltage Range: 55-150 VAC ± 5%, 110-300 VAC ± 5%
  • Frequency Range: 40Hz ~ 70Hz
  • Power Factor: ≧0.99
  • OUTPUT

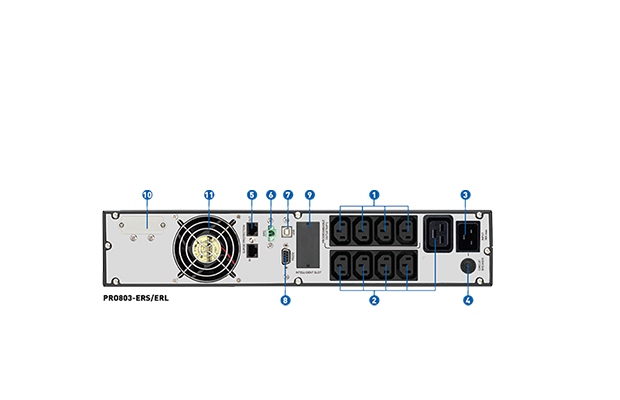

  • Connection Type: 8 x IEC 320-C13, 1 x IEC 320-C19
  • Nominal Voltage: 200/208/220/230/240 VAC
  • Voltage Regulation: ±1%
  • Frequency Range (Synchronized Range): 47 ~ 53 Hz or 57 ~ 63 Hz
  • Frequency Range (Batt. Mode): 50 Hz ± 0.5% or 60Hz ± 0.5%
  • Current Crest Ratio: 5:1 (max.)
  • Harmonic Distortion: ≦2% THD (Linear load), ≦4% THD (Non-linear load)
  • ALARM & INDICATORS
  • Battery Mode: Sounding every 4 seconds
  • Low Battery: Sounding every second
  • Overload: Sounding twice every second
  • Fault: Continuously sounding
  • LCD: Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault
  • CONNECTIVITY, CONTROL & MONITORING
  • Front panel: Status LED, Function keys, LCD display
  • Communication: Smart RS232*, USB Port, Emergency Power Off (EPO)
  • BATTERY
  • Standard Model Type: 12V / 9Ah
  • Numbers: 6
  • Typical Recharge Time: 4 hours recover to 90% capacity
  • Warranty: 2 Years on part.
