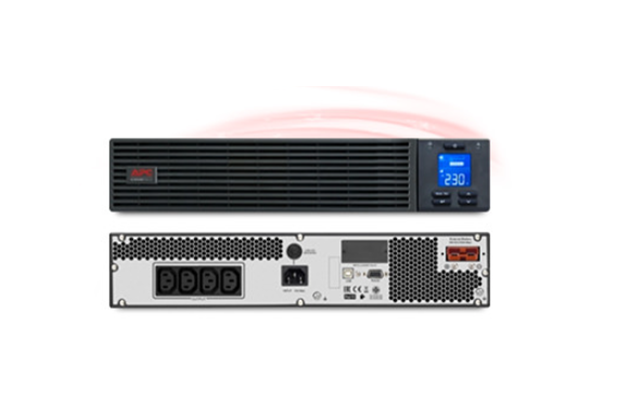

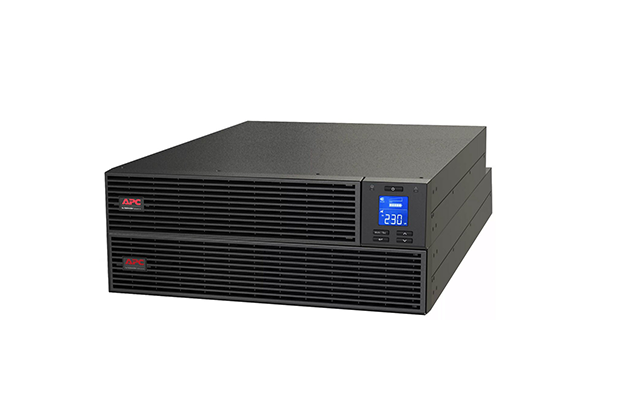

APC Easy UPS ONLINE SRV RM Ext. Runtime 1000VA 230V with Rail kit Batt pack (SRV1KRILRK)

~~$ 655.00~~ $ 645.00

Part Number: SRV1KRILRK
Lead time: Usually in Stock
Run time for load: 800 W
Min-max: 80-800 W, 23min 43s
Max. Capacity Used: 100 %
Main Input Voltage: 230 V
Warranty: 2 years repair or replace

Order Now

Specification

Part Number: SRV1KRILRK
Overview
Presentation: High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Lead time: Usually in Stock
Main
Run time for load: 800 W
Min-max: 80-800 W, 23min 43s
Max. Capacity Used: 100 %
Main Input Voltage: 230 V
Other Input Voltage: 220 V, 240 V
Main Output Voltage: 230 V
Other Output Voltage: 220 V, 240 V
Rated power in W: 800 W
Rated power in VA: 1000 VA
Input Connection Type: IEC 60320 C14
output connection type: 4 IEC 60320 C13
Number of rack unit: 4U
Number of cables: 1
Provided equipment
1 IEC 60320 C13 to Schuko power cable
1 IEC 60320 C13 to C14 power cable
1 USB cable
1 RS-232 configuration cable
1 external battery pack
1 battery cable
1 rack mounting brackets
user manual
General
Number of power module filled slots: 0
Number of power module free slots: 0
Redundant: No
Physical
Colour: Black (RAL 7010)
Height: 17.2 cm
Width: 43.8 cm
Depth: 41.2 cm
Net weight: 27 kg
Mounting location: Front
Mounting preference: Lower
Mounting mode: Rack-mounted
USB compatible: No
Mounting position: Horizontal
Input
Input voltage limits: 110...285 V half load, 160...280 V full load
Network frequency: 40...70 Hz auto sensing
Output
Maximum configurable power in VA: 1000 VA
Maximum configurable power in W: 800 W
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion: 3 %
UPS type: Double conversion online
Wave type: Sine wave
Efficiency: 88 % (full load)
Additional information: Configurable for 220 : 230 or 240 nominal output voltage
Bypass type: Internal bypass (automatic and manual)
Crest factor: 3 : 1
Conformance
Product certifications:
CE
UKCA
EAC
TISI
Standards
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 % non-condensing
Operating altitude: 0...3000 m
Ambient air temperature for storage: -20…50 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0…15000 m
Acoustic level: 50 dBA
heat dissipation: 372 Btu/h
IP degree of protection: IP20
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency: View Efficiency Graph
Battery type: Lead-acid battery
Battery voltage: 36 V
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 4.5 h
Battery life: 3…5 year(s)
Battery charger power: 175 W rated
Battery option:
SRV36RLBP-9A 1 1032 VAh
SRV36RLBP-9A 2 1548 VAh
SRV36RLBP-9A 3 2064 VAh
SRV36RLBP-9A 4 2580 VAh
Communications & Management
Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
control panel: Multifunction LCD status and control console
Surge Protection and Filtering
Surge energy rate: 600 J
Packing Units
Unit Type of Package 1: PCE
Number of Units in Package 1: 3
Package 1 Height: 48 cm
Package 1 Width: 50 cm
Package 1 Length: 60 cm
Package 1 Weight: 33.5 kg
Warranty: 2 years repair or replace
