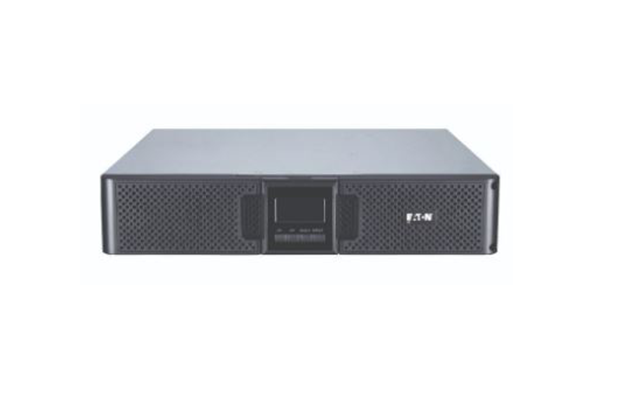

Eaton UPS 9A3000iR 3000VA/2700W Rack 2U

~~$ 1,000.00~~ $ 989.00

Specification

Part Number: Eaton 9A3000iR
TECHNICAL SPECIFICATIONS
Rating (kVA/kW): 3000VA/2700W
Format: Rack 2U
Electrical Characteristics
Topology: Online Double Conversion UPS
Nominal Voltage: 220/230/240VAC
Input Voltage Range: 100-300V
Output Voltage / THDv: 220/230/240VAC, ±1%, THDv <2% linear load, <6% non linear load
Output Frequency / THDI: 50/60 Hz, THDI 5 % typical, 7% Max

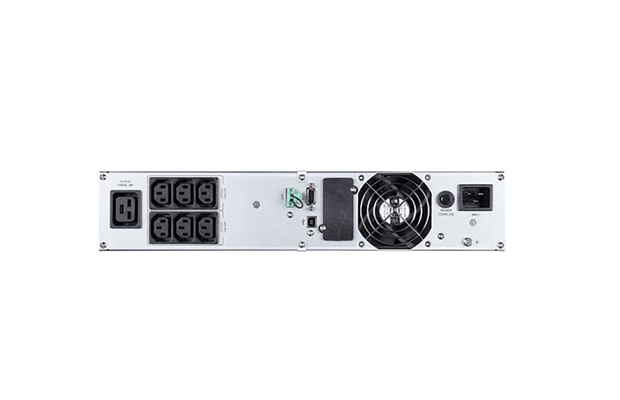

Connections
Input: IEC C20
Outputs: (6) IEC 320 C13 + (1) C19
Batteries
Battery Capacity: 6 x 12V/9Ah
9A @ 100% load: 4mins
A +1 EBM @ 100% load: 16mins
Charging Current: 1.5A
EBM: Up to 4 EBM, easy battery replacement for Rack
Physical
IP protection level: IP20
Dimensions (W x H x D) mm: 438 x 86.5 x 600mm
Communication
LCD DISPLAY: Segment LCD, special red text indication in case of warning & error.
COMMUNICATION: RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
Connectivity Card: NMC G1/AS400 /CMC G1 modbus
Software: WinPower / VCOM
Operating Environment, Standards and Approvals
Temperature range: 0~40 °C
Relative Humidity: 0-95%（Non-condensing）
Operating Altitude: 0~3000m
Noise levels: <50dB
Approvals and marking: CE, KC, TISI, IEC 62040-1,IEC 62040-2
Warranty: 2-years on Part.
