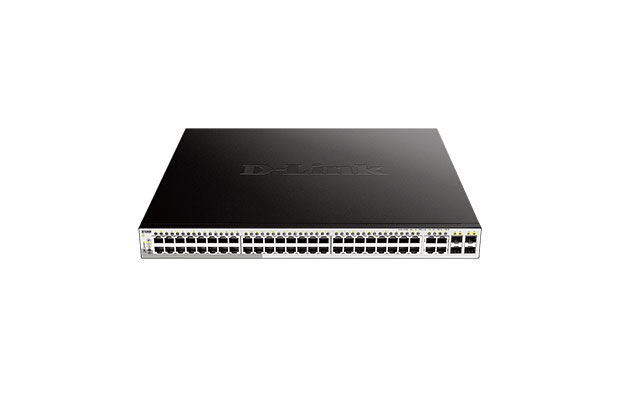

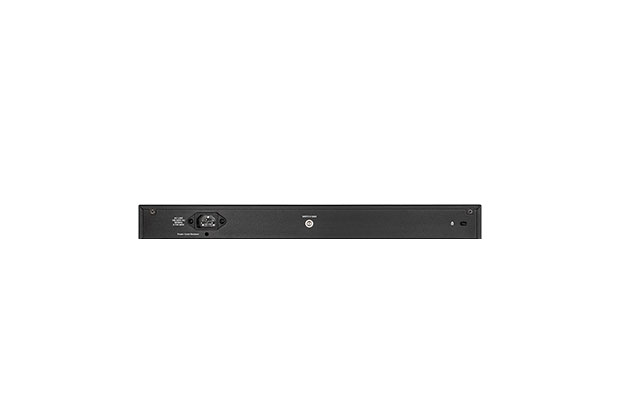

D-Link DGS-1210-52MP 52-Port Gigabit Smart Managed PoE Switch

~~$ 1,040.00~~ $ 1,029.00

Part Number: DGS-1210-52MP
48 x 10/100/1000BASE-T PoE ports
4 x Gigabit GbE/SFP combo ports
Advanced L2 switching and security features
L2+ Static Routing
Optional “standard mode” or “surveillance mode” management user interface
370W PoE budget
Warranty: 1 Year on part

Order Now

Specification

Brand Name: D-Link
1000Base-T PoE Interface: 48 (Port 1~48)
Combo 1000Base-T/SFP: 4
Auto MDI/MDIX: Yes
10/100/1000BASE-T PoE ports: 48
Combo 10/100/1000BASE-T/SFP ports: 4
Switch Capacity 104 Gbps
Max. Packet Forwarding Rate: 77.4 Mpps
Store & Forwarding Forwading: Yes
Dimension: 440mm x 430 mm x 44mm
Weight: 6.26 kg
Operation Temperature: -5 - 50°C
Storage Temperature: -20-70°C
Operation Humidity: 0% - 95% RH
Operating Altitude: 1500 meters
Maximum Power Consumption: PoE on 478.9 W/100 V 454.1 W/240 V PoE off 54 W/100 V 54.4 W/240 V
Storage Humidity: 0% ~ 95% RH
Standby Power Consumption: 32 W/100V / 31.6 W/240V
Maximum Heat Dissipation: 1634.01 BTU/hr (100 V) 1549.29 BTU/hr (240 V)
MTBF: 236,406 hours
Power Input: 100-240 VAC
CPU Speed: 700MHz
DRAM Size: 128MB
Flash Memory Size: 32MB
Packet Buffer Size: 12Mbits
FAN: Yes
Comply with RoHS 6: Yes
Energy Efficiency Ethernet (EEE): Yes
Power Saving By Link Status: Yes
Power Saving By Cable Length: Yes
Power Saving By Port Shut-Off: Yes
Power Saving By System Hibernation: Yes
Time-based PoE: Yes
Maximum PoE Budget: 370W
PoE Budget: 370 W
MAC Address Table Size: 16K
802.3x Flow Control: Yes
Head-of-line (HOL) Blocking Prevention: Yes
802.1D Spanning Tree (STP): Yes
802.1w Rapid Spanning Tree (RSTP): Yes
802.1s Multiple Spanning Tree (MSTP): Yes
Root Restriction: Yes
802.3ad Link Aggregation: Yes
Link Aggregation Group Per Device: 4
Max Port Per Link Aggregation Group: 8
Port Mirroring: Yes
Jumbo Frame: 10,000 Bytes
Loopback Detection (LBD): Yes
IGMP Snooping: Yes
Max IGMP Snooping Groups: 256
IGMP Snooping Fast Leave: Yes
MLD Snooping: Yes
MLD Snooping Groups: Yes
MLD Snooping Fast Leave: Yes
802.1Q VLAN: Yes
VLAN Groups: Yes
Port-based VLAN: Yes
Voice VLAN: Yes
Auto Surveillance VLAN: Yes
Asymmetric VLAN: Yes
IP Interface: Yes
Max Number of IP Interface: 4
ARP: Yes
ARP Entries: Yes
IPv6 Neighbor Discovery (ND): Yes
ND Entries: 128
Default Route: Yes
Static Route: Yes
Number of Queue: Yes
Strict Priority Queue (SPQ): Yes
Weighted Round Robin (WRR): Yes
Class of Service (CoS): Yes
Port-based Bandwidth Control: Yes
Max Access Control List (ACL) Entries: Yes
MAC Access List: Yes
IP Access List: Yes
IPv6 Access List: Yes
SSH: Yes
SSL: Yes (only support TLS 1.0)
Port Security: Yes
Broadcast/Multicast/Unicast Storm Control: Yes
Traffic Segmentation: Yes
Smart IP-MAC-Port Binding (Smart IMPB): Yes
D-Link Safeguard Engine: Yes
DHCP Server Screening: Yes
ARP Spoofing Prevention: Yes
DoS Attack Prevention: Yes
802.1X: Yes
Port based 802.1X Authentication: Yes
Authentication for Management Access: Yes
RADIUS: Yes
Trusted Host: Yes
Cable Diagnostics: Yes
Simple Network Time Protocol (SNTP): Yes
Web-based GUI: Yes
Telnet Server: Yes
SNMP: Yes
SNMP Trap: Yes
TFTP Client: Yes
System Log: Yes
RMONv1: Yes
LLDP: Yes
LLDP-MED: Yes
D-Link Discover Protocol (DDP): Yes (v0.26)
DHCP/BootP Client: Yes
DHCP relay: Yes
Dual Images: Yes
Dual Configurations: Yes
Debug Command: Yes
Ping: Yes
D-Link Network Assistant: Yes (Chrome edition)
Smart Wizard: Yes
Warranty: 1 Year on part
