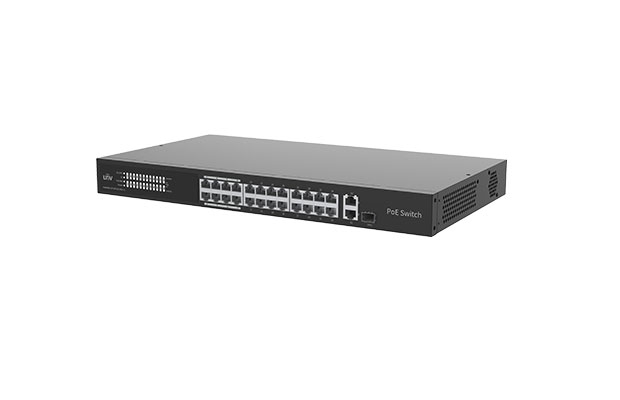

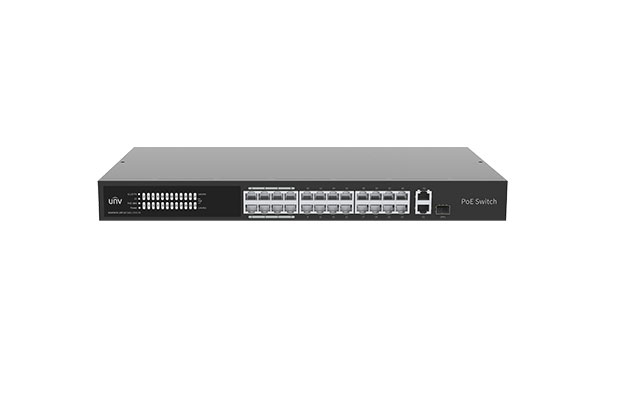

Uniview NSW3000-24T1GT1GC-POE-IN 24port POE Cloud Management Switch

~~$ 130.00~~ $ 125.00

Part Number: NSW3000-24T1GT1GC-POE-IN
Supports unified configuration, management, and search on the software, convenient for rapid operation and maintenance of multiple devices; supports automatically discovering the connected video devices and generating a network topology on the software.
Supports Web login, and device configuration and management on the Web interface; supports visiting the cloud by scanning the QR code, and allows to view the device status in real time on the app, and remotely restart the PoE power supply.
Supports PoE power supply and allows to view the power; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.
Supports the extend mode for up to 250m communication range and 10Mbps full-duplex port rate.
Allows to report port abnormal alarms to the software for realtime monitoring.
Supports port priority. The packets received by the priority port will be forwarded first and the priority port will be powered first when the PoE power supply is full.
All metal casing, secure and reliable.
Warranty: 1-year on part.

Specification

Part Number: NSW3000-24T1GT1GC-POE-IN
Ports Type: 24 x 10/100Mbps POE port (RJ45) + 1 x Gigabit port (RJ45) + 1 x Gigabit Combo
Standards: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Switching capacity: 8.8 Gbps
Forwarding performance: 6.55Mpps
Packet Buffer: 4 M bit
MAC: 16K
Dimensions (W×D×H): 440mm x 244.8mm x 44mm
Max.Power: 385W
Max.PoE Power:
- Maximum total power: 370W
- Maximum PoE power for single port: 30W
- Mode A, 1/2+, 3/6-
- Mode B, 4/5+, 7/8-
Prior Ports: 1 to 8
Cooling Fans: 1
Operating humidity: 10%～90% (non-condensing)
Storage Humidity: 5% to 90% RH, noncondensing
Weight: 2.9kg
