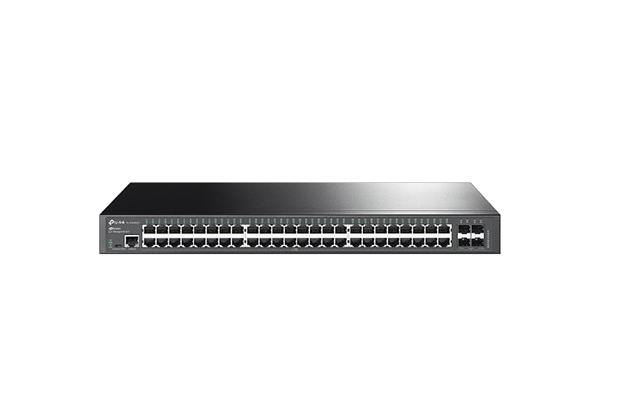

TP-Link TL-SG3452X JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

~~$ 390.00~~ $ 375.00

Part Number: TL-SG3452X
10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
Gigabit Speeds: 48× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Warranty: 3 Year on part.

Order Now

Specification

Part Number: TL-SG3452X
HARDWARE FEATURES

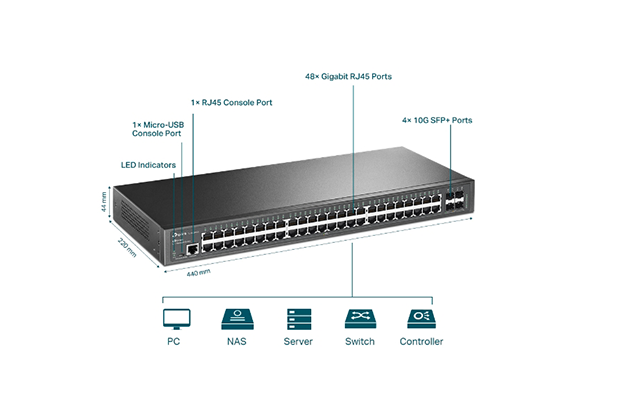

Interface:
48× 10/100/1000 Mbps RJ45 Ports
4× 10G SFP+ Slots
1× RJ45 Console Port
1× Micro-USB Console Port
Fan Quantity: Fanless
Power Supply: 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ): 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Mounting: Rack Mountable
Max Power Consumption: 32.72 W (110V/60Hz)
Max Heat Dissipation: 111.65 BTU/h (110 V/60 Hz)
PERFORMANCE
Switching Capacity: 176 Gbps
Packet Forwarding Rate: 130.9 Mpps
MAC Address Table: 16 K
Packet Buffer Memory: 12 Mbit
Jumbo Frame: 9 KB
SOFTWARE FEATURES
Quality of Service:
8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
SP (Strict Priority)
WRR (Weighted Round Robin)
SP+WRR
Bandwidth Control
Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
Mirror (to supported interface)
Redirect (to supported interface)
Rate Limit
QoS Remark
L2 and L2+ Features:
Link Aggregation
static link aggregation
802.3ad LACP
Up to 8 aggregation groups, containing 8 ports per group
Spanning Tree Protocol
802.1d STP
802.1w RSTP
802.1s MSTP
STP Security: TC Protect, BPDU Filter, Root Protect
Loopback Detection
Port based
VLAN based
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Mirroring
Port Mirroring
CPU Mirroring
One-to-One
Many-to-One
Tx/Rx/Both
L2 Multicast:
IGMP Snooping
IGMP v1/v2/v3 Snooping
Fast Leave
IGMP Snooping Querier
IGMP Authentication
IGMP Authentication
MLD Snooping
MLD v1/v2 Snooping
Fast Leave
MLD Snooping Querier
Static Group Config
Limited IP Multicast
MVR
Multicast Filtering: 256 profiles and 16 entries per profile
VLAN:
VLAN Group
Max 4K VLAN Groups
802.1Q Tagged VLAN
MAC VLAN: 30 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
Port-Based QinQ
Selective QinQ
Voice VLAN
Access Control List:
Time-based ACL
MAC ACL
Source MAC
Destination MAC
VLAN ID
User Priority
Ether Type
IP ACL
Source IP
Destination IP
Fragment
IP Protocol
TCP Flag
TCP/UDP Port
DSCP/IP TOS
User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
Mirroring
Redirect
Rate Limit
QoS Remark
ACL apply to Port/VLAN
Security:
IP-MAC-Port Binding
512 Entries
DHCP Snooping
ARP Inspection
IPv4 Source Guard: 100 Entries
IPv6-MAC-Port Binding
512 Entries
DHCPv6 Snooping
ND Detection
IPv6 Source Guard: 100 Entries
DoS Defend
Static/Dynamic Port Security
Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
kbps/ratio control mode
802.1X
Port base authentication
Mac base authentication
VLAN Assignment
MAB
Guest VLAN
Support Radius authentication andaccountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control
IPv6:
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
L3 Features:
16 IPv4/IPv6 Interfaces
Static Routing
48 static routes
Static ARP
128 Static Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP Interface Relay
DHCP VLAN Relay
DHCP L2 Relay
Advanced Features:
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
MIBs:
MIB II (RFC1213)
Interface MIB (RFC2233)
Ethernet Interface MIB (RFC1643)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
RMON MIB (RFC2819)
RMON2 MIB (RFC2021)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIB
MANAGEMENT
Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features:
Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3
Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log
OTHERS
Certification: CE, FCC, RoHS
Package Contents:
TL-SG3452X Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment:
Operating Temperature: 0–45 ℃ (32–113 ℉);
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Warranty: 3 Year on part.
