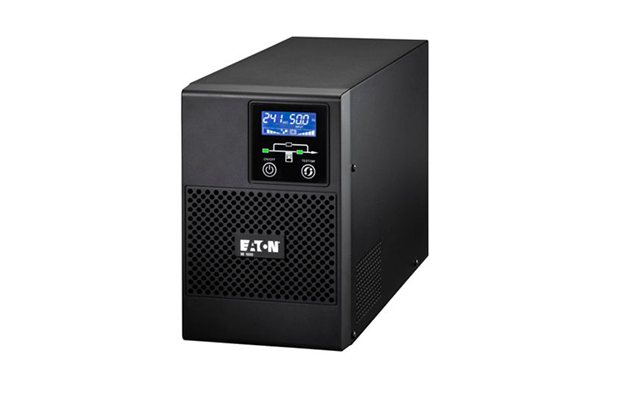

Eaton UPS 9E 1000VA Tower (9E1000i)

~~$ 360.00~~ $ 350.00

Part Number: 9E1000i
Rating (VA / W): 1000VA/800W
Form factor: Tower
Input voltage range: 176-300 V
Frequency: 50 / 60 Hz
Output voltage: 230V
Outputs: (4) C13
Warranty: 2 Years on Part.

Order Now

Specification

Part Number: 9E1000i
General specifications:
Product Name: Eaton 5SC 1000i
Rating (VA / W): 1000VA/800W
Product Length/Depth: 356 mm
Product Height: 228 mm
Product Width: 144 mm
Product Weight: 22.1 kg
Battery
Battery type: Sealed, lead-acid
Runtime graph: View runtime graph
Battery replacement: Replacable batteries
Battery quantity: 2
Battery management: Automatic battery test, Deep discharge protection
Battery rating: 12 V / 9 Ah
Extended battery capability: Yes
Electrical output

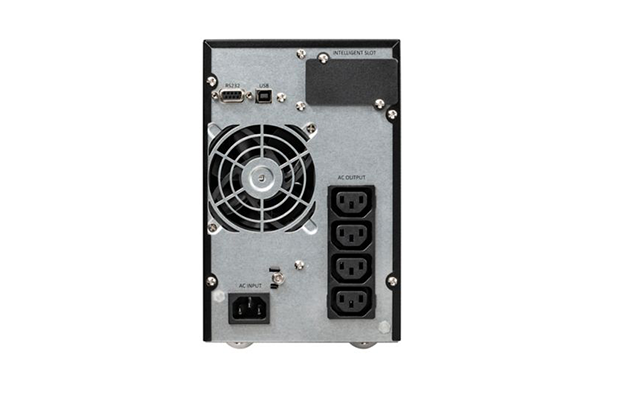

Receptacle: (4) C13
Voltage: 230V
Wattage: 800 W
Output power factor: 0.8
Output voltage range: 220/230/240 V +/- 2%
Output waveform: Sine wave
Output nominal voltage: 230V default (220/230/240V)
Voltage distortion output (linear load) - max: 3
Feed type: 1
Topology: Online/Double-conversion
VA rating: 1000 VA
Electrical input
Input connection: C14
Input nominal voltage: 230V default (220/230/240V)
Nominal frequency: 50/60 Hz
Input power factor: >.99
Input voltage range: 176-300 V (100 V-300 V with derating)
Input frequency range: 40-70 Hz
Communications
Includes network card: No
Communication
-USB port (HID compliant)
-Serial port (RS232)
-Communication slot
Ethernet interface: No

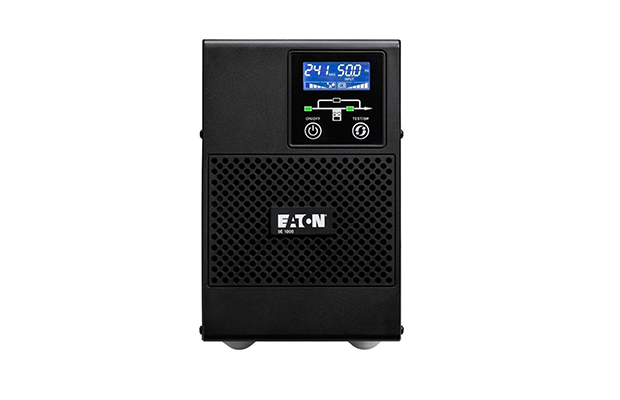

User interface: LCD Display
Potential free switch contact: No
Expansion slots: One slot for optional communication card
Software compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Type of interface: Other
Environmental
Altitude: 3000 m
Noise level: <37 dB at 1 meter
Temperature range: 0° to 40°C (32° to 104°F)
Relative humidity: 0-95% non-condensing
Additional specifications
Construction type: Free standing model
Package contents: UPS
-USB cable
-Serial cable
-Quickstart guide
-Safety instructions
Phase (output): 1
Internal bypass: Yes
Auto shutdown function: Yes
Color: Black
Efficiency: 91
Rack mounting kit: No
Phase (input): 1
Hot swap power: No
3 Years on Part (2year on battery).
