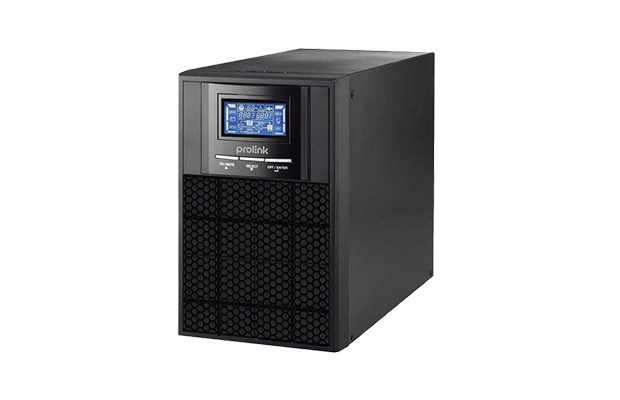

UPS PROLINK 1KVA PRO901-ES Online

$ 230.00 $ 219.00
  • Part Number: PRO901-ES
  • UPS Type: Tower
  • Phase: Single phase with ground
  • Rating (VA):  1000
  • Nominal Power (W): 900
  • Standard Model Dimension (mm): 282 x 145 x 220 (D x W x H)
  • Weight (kg): 9.8
  • Warranty: 2 Years on part.

Specification

  • Part Number: PRO901-ES
  • GENERAL
  • UPS Type: Tower
  • Phase: Single phase with ground
  • Rating (VA):  1000
  • Nominal Power (W): 900
  • Standard Model Dimension (mm): 282 x 145 x 220 (D x W x H)
  • Weight (kg): 9.8
  • INPUT
  • Connection Type: IEC 320-C14
  • Nominal Voltage: 200/208/220/230/240 VAC
  • Voltage Range:  110-300 VAC (Load at 50%) 160-280 VAC (Load at 100%)
  • Frequency Range : 45 ~ 70 Hz
  • Power Factor : >= 0.99
  • OUTPUT

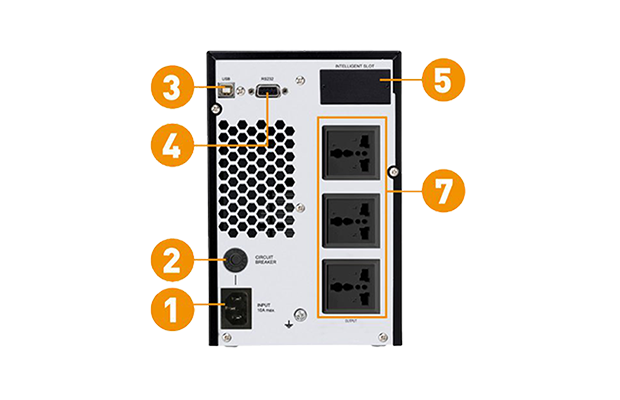

  • Connection Type: 3 x Universal socket (PRO901ES) 2 x Universal socket (PRO901EL)
  • Nominal Voltage: 200/208/220/230/240 VAC
  • Voltage Regulation: ±1%
  • Frequency Range (Synchronized Range): 47 ~ 53 Hz or 57 ~ 63 Hz
  • Frequency Range (Batt. Mode): 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz
  • Current Crest Ratio : 3:1
  • Harmonic Distortion: ≤3% THD (Linear load) ≤6% THD (Non-linear load)
  • ALARM & INDICATORS
  • Battery Mode: Sounding every 4 seconds
  • Low Battery : Sounding every second
  • Overload:  Sounding twice every second
  • Fault: Continuously sounding
  • LCD:  Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault
  • BATTERY
  • Standard Model Type: 12V / 9Ah
  • Numbers: 2
  • Typical Recharge Time: 4 hours recover to 90% capacity recover to 90% capacity
  • Warranty: 2 Years on part.
