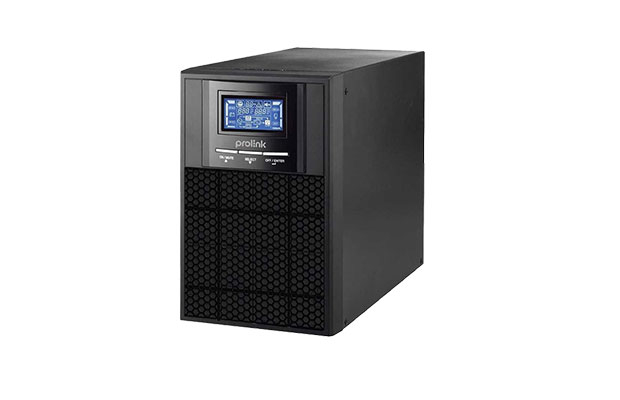

Online UPS PROLINK 1KVA PRO901-ES, LCD, 3U, USB, RS232 port, PF0.9 (battery 9AHx2) 2Y
$209.00
- Part Number: PRO901-ES
- Capacity: 1KVA: 1000VA / 900W
- Battery: 9AHx2
- UPS type: Tower
- Input phase: Single phase with ground
- Front panel: Status LED, function keys, LCD display
- Communication: Communication
- LCD indicators: Load level, battery level, AC mode, battery mode, bypass mode, and fault indicators
- Warranty: 2 years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specification
- Part Number: PRO901-ES
- *GENERAL
- UPS Type: Tower
- Phase: Single phase with ground
- Rating (VA): 1000
- Nominal Power (W): 900
- Standard Model Dimension (mm): 282 x 145 x 220 (D x W x H)
- Weight (kg): 9.8
- *INPUT
- Connection Type: IEC 320-C14
- Nominal Voltage: 200/208/220/230/240 VAC
- Voltage Range: 110-300 VAC (Load at 50%) 160-280 VAC (Load at 100%)
- Frequency Range : 45 ~ 70 Hz
- Power Factor : >= 0.99
- *OUTPUT
- Connection Type: 3 x Universal socket (PRO901ES) 2 x Universal socket (PRO901EL)
- Nominal Voltage: 200/208/220/230/240 VAC
- Voltage Regulation: ±1%
- Frequency Range (Synchronized Range): 47 ~ 53 Hz or 57 ~ 63 Hz
- Frequency Range (Batt. Mode): 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz
- Current Crest Ratio : 3:1
- Harmonic Distortion: ≤3% THD (Linear load) ≤6% THD (Non-linear load)
- *ALARM & INDICATORS
- Battery Mode: Sounding every 4 seconds
- Low Battery : Sounding every second
- Overload: Sounding twice every second
- Fault: Continuously sounding
- LCD: Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault
- *BATTERY
- Standard Model Type: 12V / 9Ah
- Numbers: 2
- Typical Recharge Time: 4 hours recover to 90% capacity recover to 90% capacity
- Warranty: 2 years on part.
