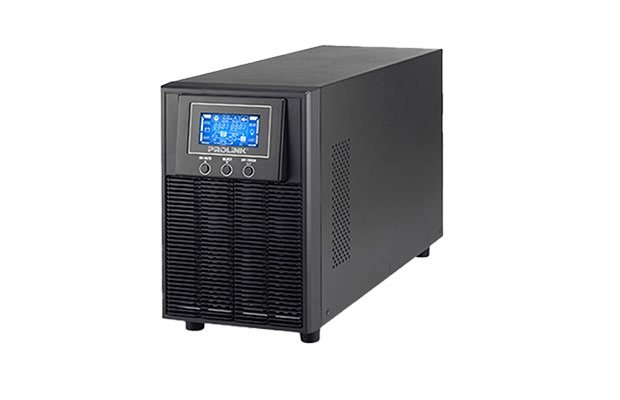

UPS Online PROLINK 2KVA PRO802-ES LCD, 8xIEC, USB, RS232 port, PF0.9 (battery 7AHx6) 2Y
$385.00
- Part Number: PRO802-ES
- Capacity: 2KVA: 2000VA / 1800W
- Battery: 7Ahx6
- UPS type: Tower
- Input phase: Single phase with ground
- Front panel: Status LED, function keys, LCD display
- Communication: Smart RS232, USB port and Emergency Power Off (EPO)
- LCD indicators: Load level, battery level, AC mode, battery mode, bypass mode, and fault
- Warranty: 2 Years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specification
- Part Number: PRO802-ES
- *GENERAL
- - UPS Type: Tower
- - Phase Single phase with ground
- - Rating (VA): 2000
- - Nominal Power (W): 1800
- - Standard Model Dimension (mm): 421 x 190 x 318 (D x W x H)
- - Weight (kg): 25.8
- *INPUT
- - Connection Type: IEC 320-C14
- - Nominal Voltage: 200/208/220/230/240 VAC
- - Voltage Range: 110-300 VAC (Based on load at 50%) 160-300 VAC (Based on load at 100%)
- - Frequency Range: 40 Hz ~ 70 Hz
- - Power Factor: ≧0.99
- - THDi: ≦ 5% @100~130VAC or 205-245VAC THDU < 1.6% @ input and full linear load condition with battery fully charged
- *OUTPUT
- - Connection Type: 8 x IEC 320-C13
- - Nominal Voltage: 200/208/220/230/240 VAC
- - Voltage Regulation: ±1%
- - Frequency Range (Synchronized Range): 47~53 Hz or 57~63 Hz
- - Frequency Range (Batt. Mode): 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
- - Current Crest Ratio: 3:1
- - Harmonic Distortion: ≦2% THD (Linear load) ≦4% THD (Non-linear load)
- *ALARM & INDICATORS
- - Battery Mode: Sounding every 4 second
- - Low Battery: Sounding every second
- - Overload: Sounding twice every second
- - Fault: Continuously sounding
- - LCD: Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault
- CONNECTIVITY, CONTROL & MONITORING
- - Front panel: Status LED, Function keys, LCD display
- - Communication: Smart RS232* USB Port Emergency Power Off (EPO)
- *BATTERY
- - Standard Model Type: 12V / 7Ah
- - Numbers: 6
- - Typical Recharge Time: 4 hours recover to 90% capacity
- Warranty: 2 Years on part.
