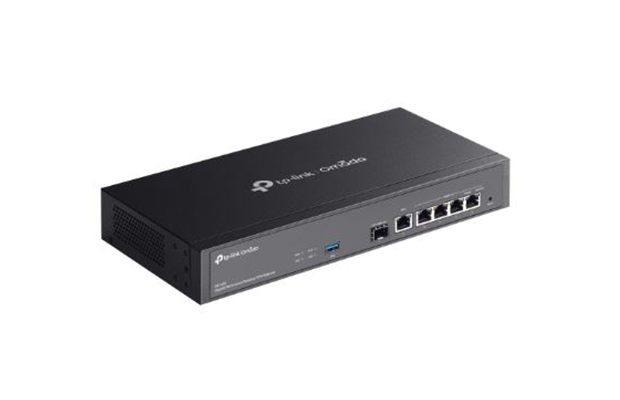

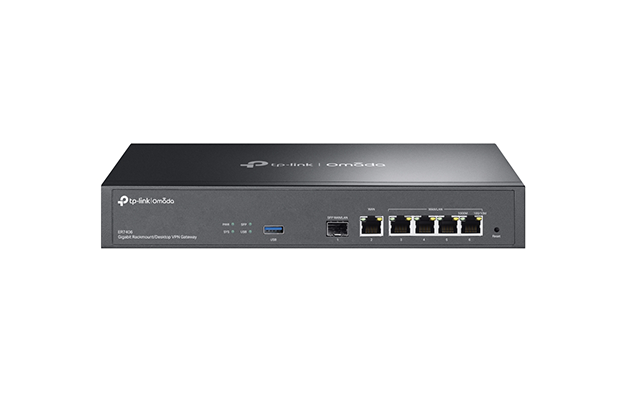

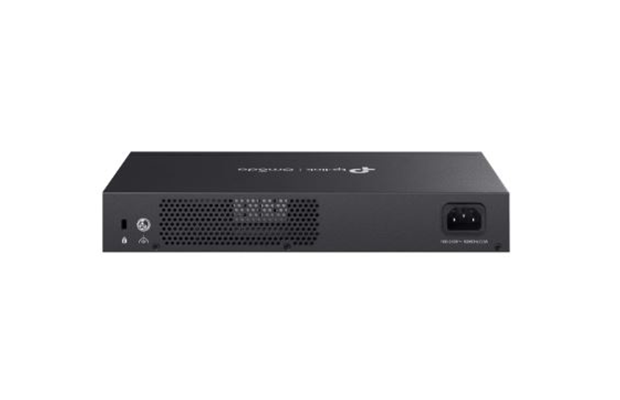

TP-Link ER7406 Omada Gigabit Rackmount/Desktop VPN Gateway

~~$ 120.00~~ $ 115.00

Part Number: TP-Link ER7406
1× Gigabit SFP WAN/LAN port
5× Gigabit RJ45 ports (1× WAN, 4× WAN/LAN)
1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
Load Balancing on up to 5 WAN ports raises the utilization rate of multi-line broadband
High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
Centralized cloud management via the web or the Omada app*
DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security.
Rackmount/Desktop
Warranty: 3 years on part.

Order Now

Specification

Part Number: TP-Link ER7406
SECURITY
Access Control: Source/Destination IP Based Access Control
Filtering:
- WEB Group Filtering§
- URL Filtering
- Web Security§
ARP Inspection:
- Sending GARP Packets
- ARP Scanning§
- IP-MAC Binding
Attack Defense:
- TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols:
- IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
- TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interface:
- 1 Gigabit SFP WAN/LAN Port
- 1 Gigabit WAN Port
- 4 Gigabit LAN/WAN Ports
- 1 USB 3.0 Port (supports USB LTE dongle and USB storage)
Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
- 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity: Fanless
Button: Reset Button
Power Supply: 100-240VAC, 50/60Hz
Flash: 128 MB NAND
DRAM: 512 MB DDR4
LED: PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Dimensions ( W x D x H ): 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)
Protection: 4 kV surge protection
Enclosure: Steel
Mounting: Desktop / Rackmountable
Max Power Consumption: 7.5 W (with USB 3.0 connected), 4.5 W (without USB 3.0 connected)
PERFORMANCE
IPS Throughput: TCP: 229 Mbps; UDP: 188 Mbps
DPI Throughput: TCP: 933 Mbps; UDP: 927 Mbps
GRE: Unencrypted: 611.9 Mbps, Encrypted: 325.0 Mbps
WireGuard VPN: 341.3 Mbps
Concurrent Session: 150,000
New Sessions /Second: 5,300
NAT (Static IP): 945.3 Mbps / 940.5 Mbps
NAT(DHCP): 939.6 Mbps / 940.9 Mbps
NAT(PPPoE): 943.6 Mbps / 940.9 Mbps
NAT (L2TP): 880.1 Mbps / 859.0 Mbps
NAT (PPTP): 855.0 Mbps / 907.2 Mbps
IPsec VPN Throughput:
• ESP-SHA1-AES256: 617.1 Mbps
• ESP-SHA256-AES256: 592.8 Mbps
• ESP-SHA384-AES256: 592.4 Mbps
• ESP-SHA512-AES256: 604.5 Mbps
OpenVPN: 139.1 Mbps
L2TP VPN Throughput:
- Unencrypted: 977.4 Mbps
- Encrypted: 334.6 Mbps
PPTP VPN Throughput:
- Unencrypted: 1064.1 Mbps
- Encrypted: 206.8 Mbps
SSL VPN Throughput: 131.6 Mbps
66 Byte Packet forwarding rate: 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate: 81,279 pps / 81,275 pps
BASIC FUNCTIONS
WAN Connection Type:
- Static IP
- Dynamic IP
- PPPoE(supports MRU Configuration)
- PPTP
- L2TP
MAC Clone: Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode)
DHCP:
- DHCP Server
- DHCPv6 PD Server (only in Standalone Mode)
- DHCP Options Customization
- DHCP Address Reservation
- Multi-IP Interfaces
- Multi-Net DHCP
IPv6: StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
VLAN: 802.1Q VLAN
IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
Advanced Routing:
- Static Routing
- Policy Routing
- RIP (available in Standalone Mode)
- OSPF (available in Standalone Mode)
Bandwidth Control: IP-based Bandwidth Control
Load Balance:
- Intelligent Load Balance
- Application Optimized Routing
- Link Backup (Timing, Failover)
- Online Detection
NAT:
- One-to-One NAT
- Multi-Net NAT
- Port Forwarding
- Port Triggering§
- NAT-DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG
- UPnP
Session Limit: IP-based Session Limit
VPN
GRE: √ (Only in Standalone Mode)
SSL VPN: 50 Tunnels
IPsec VPN:
- 100 IPSec VPN Tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- IPsec Failover
- IKE v1/v2
- MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
PPTP VPN:
- PPTP VPN Server
- PPTP VPN Client (10)**
- 50 Tunnels
- PPTP with MPPE Encryption
L2TP VPN:
- L2TP VPN Server
- L2TP VPN Client (10)**
- 50 Tunnels
- L2TP over IPSec
OpenVPN:
- OpenVPN Server
- OpenVPN Client (5)**
- 55 OpenVPN Tunnels
- "Certificate + Account" Mode
- Full Mode
AUTHENTICATION
Web Authentication:
- No Authentication
- Simple Password*
- Hotspot (Local User /Voucher*/ SMS/Radius*)
- External Radius Server
- External Portal Sever<*
- LDAP§
MANAGEMENT
Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance:
- Web Management Interface
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3
- Diagnostics (Ping & Traceroute) (only in Standalone Mode)
- NTP Synchronize (only in Standalone Mode)
- Port Mirroring
- CLI (only in Standalone Mode)
- Syslog Support
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller.
Management Features:
- Automatic Device Discovery*
- Batch Configuration*
- Batch Firmware Upgrading*
- Intelligent Network Monitoring*
- Abnormal Event Warnings*
- Unified Configuration*
- Reboot Schedule*
OTHERS
Certification: CE, FCC, RoHS
Package Contents:
- ER7406
- Power Cord
- Quick Installation Guide
- Rackmount Kit
System Requirements:
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
- MAC OS, NetWare, UNIX or Linux
Environment:
- Operating Temperature: 0 °C to 50 °C (32 °F to 122°F)
- Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
- Operating Humidity: 10% to 90% non-condensing
- Storage Humidity: 5% to 90% non-condensing
Warranty: 3 years on part.
