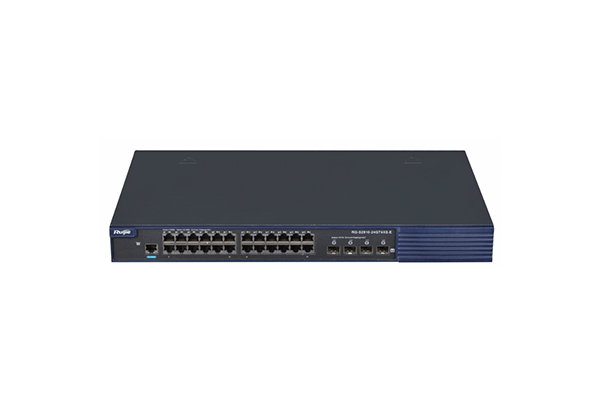

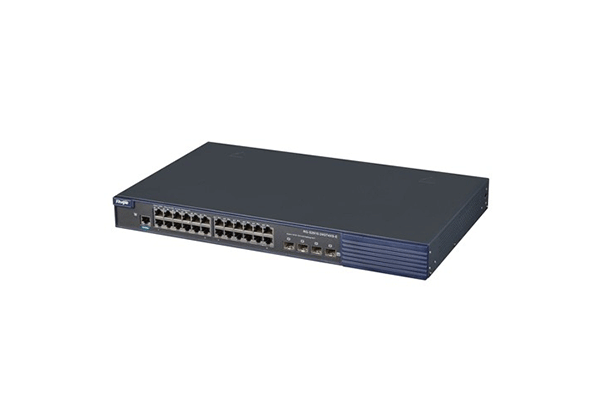

Ruijie RG-S2910-24GT4XS-E 24-Port Gigabit Access Switch

~~$ 395.00~~ $ 385.00

Part Number: RG-S2910-24GT4XS-E
Power consumption reduced by 40% compared with similar products
Multi-process modular OS RGOS 11.X developed by Ruijie Networks
SDN features and compliance with OpenFlow 1.3
Switch zero-configuration via TR069
Diverse ports
Warranty: 2years on part

Order Now

Specification

Part Number: RG-S2910-24GT4XS-E
Ports
24 10/100/1000BASE-T ports
4 1G/10GBASE-X SFP+ ports (non-combo)
Expansion Slots: N/A
Modular Power Slots: N/A
Fan Slots: Fixed
Expansion Modules: N/A
Management Ports: 1 console port
Switching Capacity: 264Gb
Packet Forwarding Rate: 96Mpps
Max. Number of 10GE Ports: 4
PoE: N/A
Port Buffer: 1.5MB
RAM: 512MB
ARP Table: 1,000
MAC Address: 16K
Routing Table Size (IPv4/IPv6): 500 (IPv4/IPv6)
ACL Entries: In: 1,500; Out: 500
VLAN: 4K 802.1q VLANs, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, QinQ, IP subnet-based VLAN, GVRP, Guest VLAN
QinQ: Basic QinQ, Flexible QinQ, 1:1 VLAN switching, N:1 VLAN switching, 1:N VLAN switching
Link Aggregation: AP, LACP (maximum 8 ports can be aggregated), Cross devices AP, Flow balance
Port Mirroring: Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, RSPAN, ERSPAN, # RG-S2910-10GT2SFP-P-E supports N:1/1:N port mirroring, Flow-based mirroring
Spanning Tree Protocols: IEEE802.1d STP, IEEE802.1w RSTP, Standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC protection, ROOT guard，Spanning Tree Root Guard(STRG)
DHCP: DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay，DHCP Snooping Option 82
Multiple Spanning Tree Protocol (MSTP) Instances: 64
Maximum Aggregation Port (AP)
128 SDN: OpenFlow 1.0 & 1.3
IPv4 Features: Ping, Traceroute
IPv6 Features: ICMPv6, IPv6 Ping, IPv6 Tracert, Manually configure local address, Automatically create local address
IPv4 Routing Protocols: Static Routing, RIP, OSPF v1/v2
Basic IPv6 Protocols: IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping and IPv6 Tracert
IPv6 Routing Protocols: Static routing, RIPng, OSPF v3
G.8032: Support
EEE Format: Support IEEE 802.3az standard
Other Protocols: FTP, TFTP, DNS client, DNS static
Dimensions (W x D x H) (mm): 440 × 260 × 43.6
Rack Height: 1RU
Weight: ≤3.5kg
MTBF (hours): >200K
Power Supply AC input:
Rated voltage range: 100V to 240V AC
Maximum voltage range: 90V to 264V AC
Frequency: 50/60Hz
Rated current: 1.5A
Power Supply HVDC input:
Input voltage range: 192V to 290V DC
Input current range: 0.5A to 0.1A
Power Consumption: 24W
Temperature:
Operating temperature: 0°C to 50°C
Storage temperature: -40°C to 70°C
Humidity
Operating humidity: 10% to 90%RH
Storage humidity: 5% to 95%RH
Operating Altitude: -500m to 5,000m
Warranty: 2years on part
