UPS Prolink 1KVA PRO801ERS Online UPS LCD Rack Mount

$ 360.00 $ 350.00
  • Part Number: PRO801ERS
  • UPS Type: Rack / Tower
  • Phase: Single phase with ground
  • Rating (VA): 1000
  • Nominal Power (W): 900
  • Dimension (mm): 410 x 438 x 88 [2U] (D x W x H)
  • Weight (kg): 11.6 Kg
  • Warranty: 2 Years on part.

Specification

  • Part Number: PRO801ERS
  • GENERAL
  • UPS Type: Rack / Tower
  • Phase: Single phase with ground
  • Rating (VA): 1000
  • Nominal Power (W): 900
  • Dimension (mm): 410 x 438 x 88 [2U] (D x W x H)
  • Weight (kg): 11.6 Kg
  • INPUT
  • Connection Type: IEC 320-C14
  • Nominal Voltage: 200/208/220/230/240 VAC
  • Voltage Range: 55-150 VAC ± 5%, 110-300 VAC ± 5%
  • Frequency Range: 40Hz ~ 70Hz
  • Power Factor: ≧0.99
  • OUTPUT
  • Connection Type: 8 x IEC 320-C13
  • Nominal Voltage: 200/208/220/230/240 VAC
  • Voltage Regulation: ±1%
  • Frequency Range (Synchronized Range): 47 ~ 53 Hz or 57 ~ 63 Hz
  • Frequency Range (Batt. Mode): 50 Hz ± 0.5% or 60Hz ± 0.5%
  • Current Crest Ratio: 5:1 (max.)
  • Harmonic Distortion: ≦2% THD (Linear load), ≦4% THD (Non-linear load)
  • ALARM & INDICATORS
  • Battery Mode: Sounding every 4 seconds
  • Low Battery: Sounding every second
  • Overload: Sounding twice every second
  • Fault: Continuously sounding
  • LCD: Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault
  • CONNECTIVITY, CONTROL & MONITORING
  • Front panel: Status LED, Function keys, LCD display
  • Communication: Smart RS232*, USB Port, Emergency Power Off (EPO)
  • BATTERY
  • Type: 12V / 9Ah
  • Numbers: 2
  • Typical Recharge Time: 4 hours recover to 90% capacity

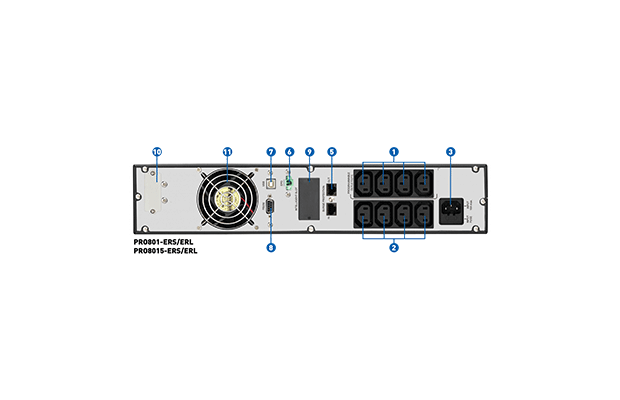

  • REAR PANEL
  • 1. Programmable outlets: connect to non-critical loads
  • 2. Output receptacles: connect to mission-critical loads
  • 3. AC input
  • 4. Input circuit breaker
  • 5. Network/Fax/Modem surge protection
  • 6. Emergency power off function connector (EPO)
  • 7. USB communication port
  • 8. RS-232 communication port
  • 9. Intelligent slot
  • 10. External battery connection
  • 11. Cooling fan
  • Warranty: 2 Years on part.
