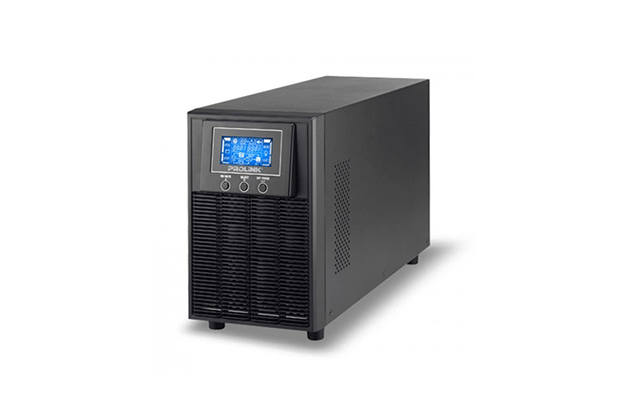

UPS PROLINK 3KVA PRO803-ES Online

$ 449.00 $ 439.00
  • Part Number: PRO803-ES
  • UPS Type: Tower
  • Phase: Single phase with ground
  • Rating (VA): 3000
  • Nominal Power (W): 2700
  • Standard Model Dimension (mm): 421 x 190 x 318 (D x W x H)
  • Weight (kg): 27
  • Warranty: 2 Years on part.

Specification

  • Part Number: PRO803-ES
  • GENERAL
  • UPS Type: Tower
  • Phase: Single phase with ground
  • Rating (VA): 3000
  • Nominal Power (W): 2700
  • Standard Model Dimension (mm): 421 x 190 x 318 (D x W x H)
  • Weight (kg): 27
  • INPUT
  • Connection Type: IEC 320-C20
  • Nominal Voltage: 200/208/220/230/240 VAC
  • Voltage Range: 110-300 VAC (Based on load at 50%) 160-300 VAC (Based on load at 100%)
  • Frequency Range: 40 Hz ~ 70 Hz
  • Power Factor: ≧0.99
  • THDi: ≦ 5% @100~130VAC or 205-245VAC THDU < 1.6% @ input and full linear load condition with battery fully charged
  • OUTPUT
  • Connection Type: 6 x IEC 320-C13 Terminal
  • Nominal Voltage: 200/208/220/230/240 VAC
  • Voltage Regulation: ±1%
  • Frequency Range (Synchronized Range): 47~53 Hz or 57~63 Hz
  • Frequency Range (Batt. Mode): 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
  • Current Crest Ratio: 3:1
  • Harmonic Distortion: ≦2% THD (Linear load) ≦4% THD (Non-linear load)
  • ALARM & INDICATORS
  • Battery Mode: Sounding every 4 second
  • Low Battery: Sounding every second
  • Overload: Sounding twice every second
  • Fault: Continuously sounding
  • LCD: Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault
  • CONNECTIVITY, CONTROL & MONITORING
  • Front panel: Status LED, Function keys, LCD display
  • Communication: Smart RS232* USB Port Emergency Power Off (EPO)
  • BATTERY
  • Standard Model Type: 12V / 9Ah
  • Numbers: 6
  • Typical Recharge Time: 4 hours recover to 90% capacity
  • Warranty: 2 Years on part.
