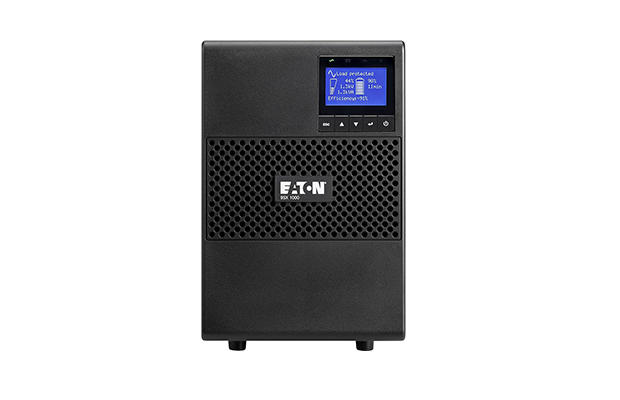

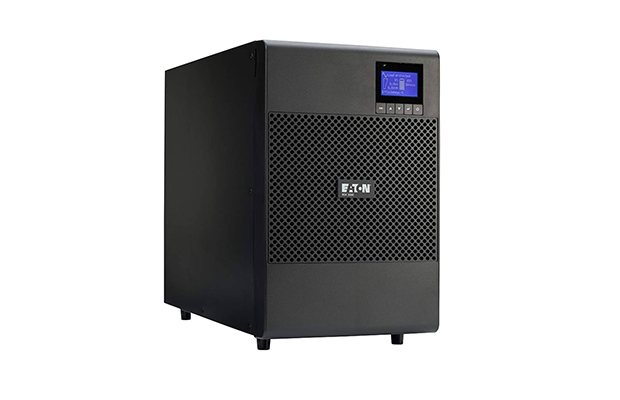

Eaton UPS 9SX 1500VA/1350W Online (9SX1500)

~~$ 776.00~~ $ 765.00

Part Number: Eaton 9SX1500
Product Name: Eaton 9SX UPS
Rating (VA / W): 1500 VA/1350 W
VA rating: 1500 VA
Form factor: Tower
Input voltage range: 190-276 Vac
Frequency: 50 / 60 Hz
Output voltage: 230V
Input frequency range: 40-70 Hz
Product Weight: 18.4 kg
Receptacle: (6) C13
Warranty: 3year on electric (2year on battery).

Order Now

Specification

Part Number: Eaton 9SX1500
GENERAL SPECIFICATIONS
Product Name: Eaton 9SX UPS
UPC: 743172091246
Product Length/Depth: 17.1 in
Product Height: 9.9 in
Product Width: 6.3 in
Product Weight: 41.9 lb
BATTERY
Runtime graph: View runtime graph
Battery management: ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Battery replacement: Hot-swappable internal batteries and extended battery modules (EBMs)
Extended battery capability: Yes
ELECTRICAL OUTPUT
Receptacle: (6) 5-15R
Topology: Online/Double-conversion
Wattage: 1350 W
VA rating: 1500 VA
Output waveform: True sine wave
Voltage: 120V
Output power factor: 0.9
Output nominal voltage: 120V default (100/110/120/125V)
Output frequency: 50/60 Hz
Feed type: 1
ELECTRICAL INPUT
Input connection: 5-15P
Input cord length: 8 ft
Input frequency range: 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz
Input power factor: >.99

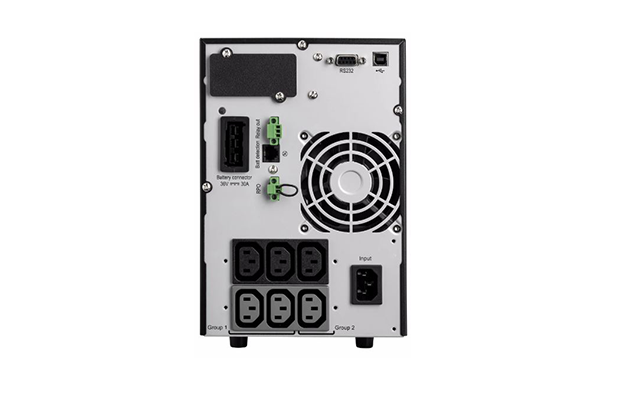

COMMUNICATIONS
Communication:
- (1) MiniSlot
- (1) USB port
- (1) Serial RS-232 port
- (1) RPO/ROO/Signal input terminal
- (1) mini-terminal block for output relay
Expansion slots:
- (1) Mini-Slot (MS) expansion port. Optional connectivity cards may be ordered separately.
- Gigabit Web/SNMP card part number: NETWORK-M3
- Modbus card part number: INDGW-M2
- Relay card part number: RELAY-MS
User interface: 5-button graphical user interface
Potential free switch contact: Yes
ENVIRONMENTAL
Temperature range: 0° to 40°C (32° to 104°F)
ADDITIONAL SPECIFICATIONS
Special features: This product is designed with features typically required in commercial applications, including network connectivity and a metal case
Form factor: Tower
Construction type: Free standing model
Efficiency: 90.44%
Package contents:
- 9SX 1500 VA UPS
- Quick start guide
- RS-232 serial cable
- USB cable
Internal bypass: Yes
Warranty: 3year on electric (2year on battery).
