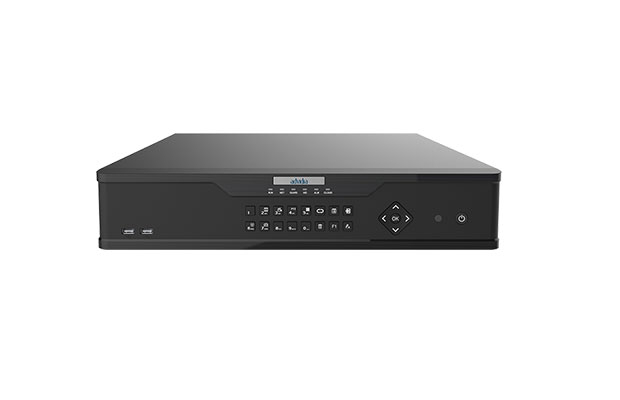

Advidia M-NVR-32CH 32ch 8HDDs 4K NVR

~~$ 1,690.00~~ $ 1,660.00

Part Number: M-NVR-32CH
Support H.265/H.264 video formats
Support cloud Firmware upgrade
NDAA Compliant
32-channel input
Support 2-ch HDMI, 1-ch VGA independent outputs
HDMI1 and HDMI2 up to 4K (3840x2160) resolution
Up to 4K resolution recording
Support RAID 0, 1,5, 6, 10
8 SATA HDDs, up to 10TB for each HDD
Support N+1 Hot spare
ANR technology to enhance the storage reliability when the network is disconnected
Support mainstream camera of ONVIF conformance (Profile G, S, T) and RTSP protocols
Warranty: 1-Year on part.

Order Now

Specification

Part Number: M-NVR-32CH
Support H.265/H.264 video formats
Support cloud Firmware upgrade
NDAA Compliant
32-channel input
Support 2-ch HDMI, 1-ch VGA independent outputs
HDMI1 and HDMI2 up to 4K (3840x2160) resolution
Up to 4K resolution recording
Support RAID 0, 1,5, 6, 10
8 SATA HDDs, up to 10TB for each HDD
Support N+1 Hot spare
ANR technology to enhance the storage reliability when the network is disconnected
Support mainstream camera of ONVIF conformance (Profile G, S, T) and RTSP protocols
IP Video Input: 32-ch
Supported camera: advidia M-series
Audio Input: 1-ch, RCA
Incoming Bandwidth: 384Mbps
Outgoing Bandwidth: 384Mbps
Remote Users: 128
Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS
HDMI/VGA Output" HDMI 1/ HDMI 2 (HDMI audio output is not supported)
4K (3840x2160)/30Hz, 1920X1080/60Hz, 1920X1080/50Hz, 1600X1200/60Hz, 1280X1024/60Hz, 1280X720/60Hz, 1024X768/60Hz
VGA: 1920X1080/60Hz, 1920X1080/50Hz, 1280X1024/60Hz, 1280X720/60Hz, 1024X768/60Hz
Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Recording Mode: Normal, Event, Manual
Audio Output: 1-ch, RCA
Camera Control: Pan/Tilt, Zoom, Focus, Iris, Preset Position, Preset Patrol, Recorded Patrol, Auto Guard
Synchronous Playback: 16-ch
Multiscreen Mode: Normal Mode: 4/6/8/9/16/25/36
Corridor Mode: 3/4/5/7/9/10/12/16/32
Web Client: 4/6/8/9/10/13/16
Decoding format H.265/H.264
Live view/Playback: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability: 2 x12MP@30fps, 4 x 4K@30fps, 8x 4MP@30fps, 9 x 4MP@30fps, 16 x 1080P@30fps, 32 x 720P@30fps
SATA: 8 SATA interface
Capacity: Up to 10TB for each disk
eSATA: 1 eSATA interface.
