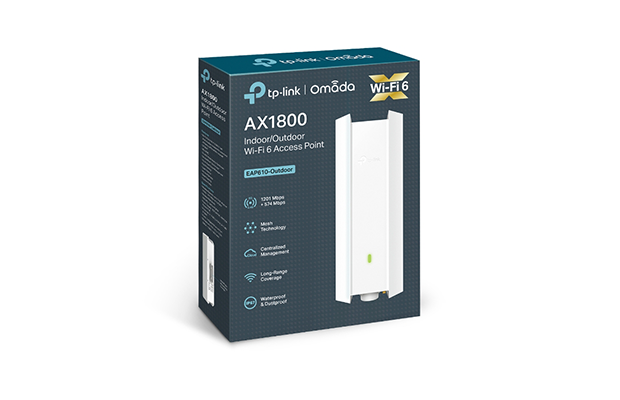

TP-Link EAP610-Outdoor AX1800 Indoor/Outdoor WiFi 6 Access Point

~~$ 118.00~~ $ 110.00

Part Number: EAP610-Outdoor
Superior WiFi 6 Speeds: Delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology†
Higher Network Efficiency: Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO
Long-Range Coverage: Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure
Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment**
Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points**
Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management
Warranty: 3 Years on part.

Order Now

Specification

Part Number: EAP610-Outdoor
HARDWARE FEATURES
Interface: 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Button: Reset
Power Supply:
802.3at PoE
48V/0.5A Passive PoE (PoE Adapter Included)
Power Consumption:
EU: 12.5W (802.3at PoE or Passive PoE)
US: 14.7W (802.3at PoE or Passive PoE)
Dimensions ( W x D x H ): 280.4×106.5×56.8 mm (without antenna & mounting kit)
Antenna: 2.4 GHz: 2× 4 dBi; 5 GHz: 2× 5 dBi
Weatherproof Enclosure: IP67
Mounting: Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Client Capacity: 250+△
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz, 5 GHz
Signal Rate:
802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Transmit Power:
CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
Wireless Functions:
1024-QAM
4× Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MU-MIMO
Omada Mesh**
Seamless Roaming**
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security:
Captive Portal Authentication**
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
EP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
MANAGEMENT
Omada App: Yes
Centralized Management:
Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0)
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access:
Yes, through
Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0)
OC300
OC200
Omada Software Controller
Email Alerts: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c
System Logging Local/Remote Syslog: Yes
SSH: Yes
Web-based Management: Yes
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0).
OTHERS
Certification: CE, FCC, RoHS
Package Contents:
Access Point EAP610-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kits
Waterproof Kits
Waterproof Antenna
Installation Guide
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment:
Operating Temperature: -30–70 ℃ (-22–158 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Warranty: 3 Years on part.
