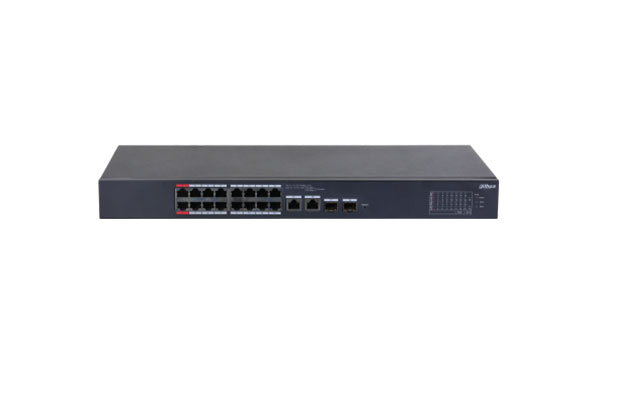

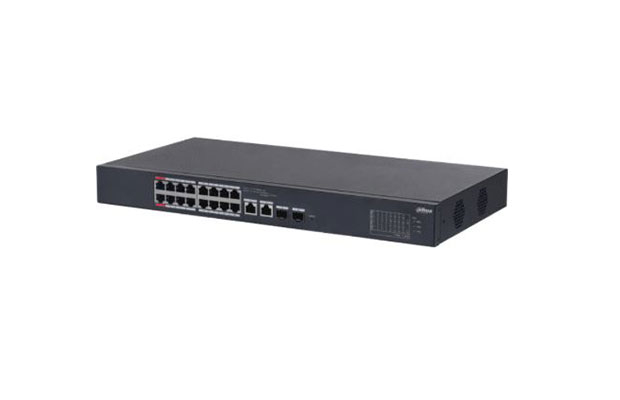

Dahua DH-CS4218-16ET-135 18-Port Cloud Managed Desktop Switch with 16-Port PoE

$ 120.00 $ 115.00
  • Part Number: DH-CS4218-16ET-135
  • Dahua Layer2 manageable switch in the cloud
  • 16x Fast Ethernet PoE ports
  • 2x combo RJ45 Uplink Gigabit ports
  • 2x combo SFP Uplink Gigabit ports
  • 8K MAC addresses
  • PoE consumption management
  • Supports intelligent PoE
  • Warranty: 1-year on part.
Order Now

Specification

  • Part Number: DH-CS4218-16ET-135
  • Technical Specification
  • Ethernet Port: Port 1-16 / 16 x RJ45 10/100M (PoE)
  • Ethernet Port Uplink Speed ​​: Port 17-18 / 2 x RJ45 10/100/1000 (Uplink)
  • Port 17-18 / 2 x SFP 1000 Mbps (Combo)
  • Performance
  • Layer 2
  • Switching Capacity : 7.2Gbps
  • Packet Forwarding Rate : 5.36Mpps
  • Packet Buffer Size : 4Mbit
  • Jumbo Frame : 15K Byte
  • MAC Table Size : 8K
  • Communication Standard : IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
  • PoE
  • PoE Standard : IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt
  • PoE Power : Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 135 W
  • PoE Power Consumption Management : YES
  • PoE Pin Assignment : PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
  • Long Distance PoE Transmission : Yes
  • VLAN Function : Port-based VLAN
  • General
  • Statics Protection : Air discharge: 8kV / Contact discharge: 6kV
  • Lighting protection : Common mode: 4kV / Differential mode: 2kV
  • Product Dimensions : 440mm×220mm×44mm
  • Net Weight : 2.23 kg
  • Gross Weight : 2.88 kg.
