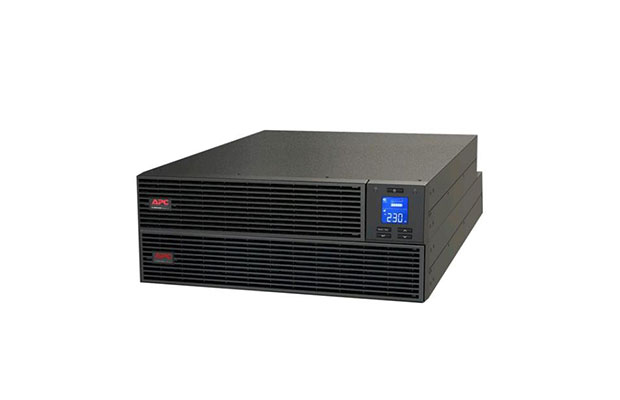

APC Easy UPS SRV 10000VA 230V (SRV10KRI)

~~$ 3,030.00~~ $ 3,010.00

Part Number: SRV10KRI
Max Configurable Power (Watts): 10.0kWatts / 10.0kVA
Efficiency at Full Load: 94.0 %
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Other Output Voltages: 220, 240
Warranty: 2 years repair or replace

Order Now

Specification

Brand Name: APC Easy UPS
Output:
Max Configurable Power (Watts): 10.0kWatts / 10.0kVA
Efficiency at Full Load: 94.0 %
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Other Output Voltages: 220, 240
Load Crest Factor: 3 : 1
Topology: Double Conversion Online
Waveform type: Sine wave
Bypass: Internal Bypass (Automatic and Manual)
Input:
Input frequency: 40 - 70 Hz
Input voltage range for main operations: 176 - 300V
Input voltage adjustable range for mains operation: 110 - 300 (half load)V
Efficiency at Full Load: 94.0 %
Other Input Voltages: 220, 240
Batteries & Runtime:
Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 3hour(s)
Battery Charge Power (Watts): 531Watts
Battery Volt-Amp-Hour Capacity: 1599
Runtime: View Runtime Graph, View Runtime Chart
Communications & Management:
Interface Port(s): DB-9 RS-232, Intelligent Smart Slot, USB
Control panel: Multi-function LCD status and control console
Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO): Yes
Available SmartSlot™ Interface Quantity: 1
Surge Protection and Filtering:
Surge energy rating: 600Joules
Physical:
Maximum Height: 685MM, 68.5CM
Maximum Width: 190MM, 19.0CM
Maximum Depth: 447MM, 44.7CM
Net Weight: 65.0KG
Shipping weight: 77.0KG
Shipping Height: 910MM, 91.0CM
Shipping Width: 320MM, 32.0CM
Shipping Depth: 580MM, 58.0CM
Color: Black
Environmental:
Operating Temperature: 0 - 40 °C
Operating Relative Humidity: 0 - 95 (non-condensing) %
Operating Elevation: 0-3000meters
Storage Temperature: -15 - 60 °C
Storage Relative Humidity: 0 - 95 (non-condensing) %
Storage Elevation: 0-15000meters
Audible noise at 1 meter from surface of unit: 58.0dBA
Protection Class: IP 20
Conformance:
Approvals: CE, IEC 62040-1-1, IEC 62040-1-2
Warranty: 2 years repair or replace
