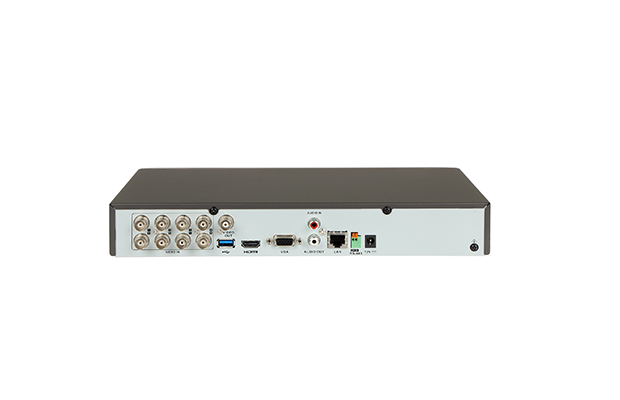

Hikvision iDS-7208HUHI-M1/E 8-ch 5MP 1U H.265 AcuSense DVR

~~$ 136.00~~ $ 129.00

Part Number: iDS-7208HUHI-M1/E
8-ch 5MP 1U H.265 AcuSense DVR
1 SATA interface, up to 10 TB capacity for each disk
Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression, Audio via coaxial cable
HDTVI/AHD/CVI/CVBS/IP video inputs, Deep learning-based perimeter protectio
Up to 12-ch IP camera inputs (up to 8 MP)
Encoding ability up to 8 MP@8 fps
Warranty: 1 year on part

Order Now

Specification

Part Number: iDS-7208HUHI-M1/E
Motion Detection 2.0
Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Perimeter Protection
Line Crossing Detection/Intrusion Detection: Up to 4-ch
Facial Detection
Facial Detection And Capture: Face picture detection, face picture search
Recording
Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate: 32 Kbps to 10 Mbps
Dual-Stream: Support
Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bitrate: 64 Kbps
Video And Audio
IP Video Input: 4-ch (up to 12-ch)
Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input: 8-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input: 8 MP@15 fps, 8 MP@12 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input : 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input: 8 MP@15 fps, 8 MP@12 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
CVBS Input: PAL/NTSC
HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode: HDMI/VGA simultaneous output
Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Synchronous Playback: 8-ch
Network
Total Bandwidth: 128 Mbps
Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection: 64
Network Interface: 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA: 1 SATA interface
Capacity: Up to 10 TB capacity for each disk
USB Interface: Rear panel: 2 × USB 2.0
General
Power Supply: 12 VDC, 2 A
Consumption: ≤ 10 W (without HDD)
Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity: 10% to 90%
Dimension (W × D × H): 265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
Weight: ≤ 1.6 kg (without HDD, 3.5 lb.)
Warranty: 1 year on part
