Dahua XVR5216AN-I3 16CH 5MP 1080P 1U 2HDDs DVR

~~$ 164.00~~ $ 159.00

Part Number: XVR5216AN-I3
> H.265+/H.265 dual-stream video compression
> Supports Full-channel AI Coding
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 24 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth
> Up to 4 channels video stream (analog channel) Perimeter Protection
> Up to 16 channels video stream (analog channel) SMD Plus
> Up to 2 channels video stream (analog channel) human face recognition
> IoT & POS functionalities
Warranty: 1 Year on part.

Order Now

Specification

Part Number: XVR5216AN-I3
System
Main Processor: Embedded processor
Operating System: Embedded Linux
Operating System: Web; Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels):
Advanced Model: 2 channel, 10 IVS for each channel
General Model: 4 channels, 10 IVS for each channel
Face Detection
Face Attributes: Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels): 2 channels (up to 12 face images/s)
Face Recognition
Face Database Capacity: Up to 10 face databases with 10000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture
Face Recognition Performance of AI by Recorder (Number of Channels): 2 channels
SMD Plus
SMD Plus by Recorder: 16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input: 16 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input:
1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps.
2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.
. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.
IP Camera Input:
Up to 24 channels of IPC access
8 IP channels by default + 16 channels (analog channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity
Main stream: 5MP Mode: 4-ch 5MP@(1-6fps); other channels 5M-N@(1-12fps)
5M-N Mode: All channel 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps)
Sub stream: D1, CIF@ (1–15fps)
Dual-stream: Yes
Video Frame Rate: PAL: 1 fps–25 fps, NTSC: 1 fps–30 fps.
Video Bit Rate: 32 Kbps–6144 Kbps Per Channel
Audio Sampling: 8 KHz, 16 bit
Audio Bit Rate: 64 Kbps
Bit Rate Type: Video stream and composite stream.
Video Output:
1 HDMI, 1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode.
Multi-screen Display:
When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25
Third-party Camera Access: Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
Compression Standard
Video Compression: AI Coding/H.265+/H.265/H.264+/H.264
Audio Compression: G.711A/G.711u/PCM
Network
Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access: iPhone, iPad, Android
Interoperability: ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Browser: Chrome, IE9 or above, Firefox
Network Mode: Single-address mode
Recording Playback
Record Mode: General, motion detection; intelligent; alarm; POS
Recording Playback: 1/4/9/16
It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode.
Backup Method: USB Device/Network
Playback Mode: Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Storage
Disk Group: Yes
Alarm
General Alarm: Motion detection, video loss, tampering
Anomaly Alarm: No disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent Alarm: Face detection, face recognition, perimeter protection
Alarm Linkage: Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

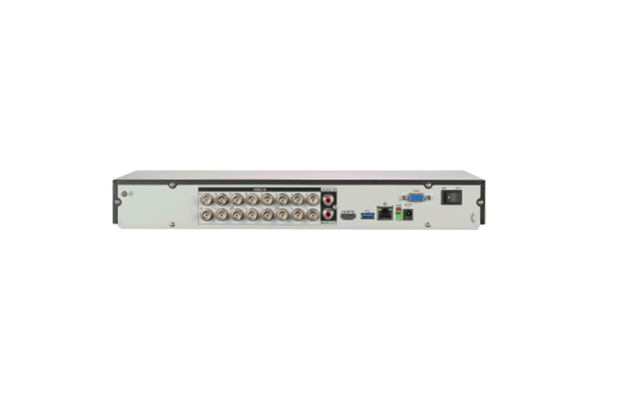

Ports
Audio Input: 1-channel RCA (external); 16-channel BNC (coaxial audio)
Audio Output: 1-channel RCA
Two-way Talk: Yes (share the same audio input with the first channel)
HDD Interface: 2 SATA Ports, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature
RS-485: 1 Port, for PTZ Control
USB: 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI: 1
VGA: 1
Network Port: 1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply: DC12V, 4A
Power Consumption: Lower than 12 W
Net Weight: 1.56 kg (3.44 lb)
Gross Weight: 2.86 kg (6.31 lb)
Product Dimensions
1U, 375.0 mm × 289.4 mm × 53.0 mm
14.76" × 11.39" × 2.09" (W × D × H)
Packaging Dimensions
433.0 mm × 141.0 mm × 366.0 mm
17.05" × 5.55" × 14.41" (W × D × H)
Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity: 10%–90%
Installation: Desktop
Certifications
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
Warranty: 1 Year on part.
