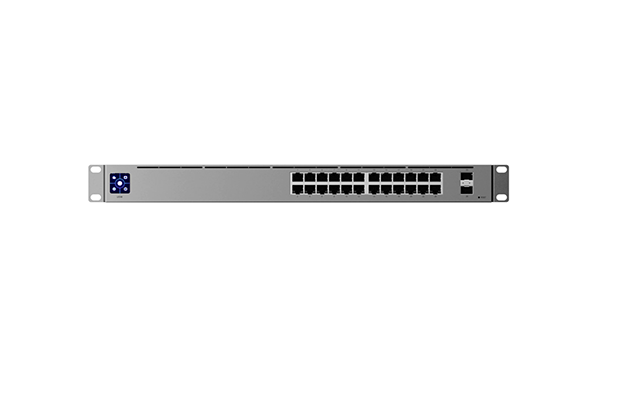

UniFi 24-Port Gigabit Switch (USW-24)

~~$ 330.00~~ $ 320.00

Part Number: USW-24
1 GbE RJ45: 24 (1G/100M/10M)
1G SFP: 2
Form Factor: Rack mount (1U)
Switching Capacity: 52 Gbps
Total Non-Blocking Throughput: 26 Gbps
Forwarding Rate: 39 Mpps
Warranty: 1-year on Part.

Order Now

Specification

Part Number: USW-24
Overview
Dimensions: 442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
Port Layout:
1 GbE RJ45: 24 (1G/100M/10M)
1G SFP: 2
Form Factor: Rack mount (1U)
Performance:
Switching Capacity: 52 Gbps
Total Non-Blocking Throughput: 26 Gbps
Forwarding Rate: 39 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 8,000
Packet Buffer Size: 0.5 MB
Access Lists:
IPv4: 128
MAC: 128
Hardware
Max. Power Consumption: 25W
Power Method: Universal input, 100—240V AC, 50/60 Hz
Power Input Method: AC input
Power Supply: AC/DC, internal, 36W
Supported Voltage Range: 100—240V AC
Management: Ethernet, AR
Heat Dissipation (Excluding PoE Output): 85.3 BTU/hr
Weight
Without mounting brackets: 2.7 kg (6 lb)
With mounting brackets: 2.8 kg (6.2 lb)
Enclosure Material: SGCC steel
Mount Material: SGCC steel
Supported Rack Depth: 400~1200 mm (15.7-47.2")
LCM Display: 1.3" touchscreen
Ambient Operating Temperature: -5 to 45° C (23 to 113° F)
Ambient Operating Humidity: 10 to 90% noncondensing
NDAA Compliant: ✓
Certifications: CE, FCC, IC, Anatel
Software
Application Requirements
UniFi Network: Version 7.2.94 and later
Warranty: 1-year on Part.
