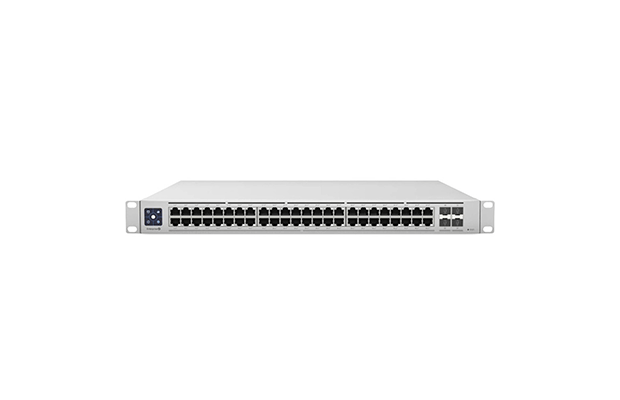

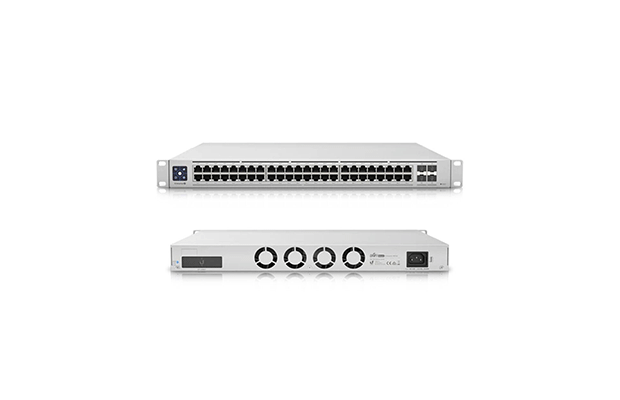

UniFi Switch Enterprise 48 PoE (USW-Enterprise-48-PoE)

$ 2,200.00 $ 2,188.00
  • Part Number: USW-Enterprise-48-PoE
  • (48) 2.5GbE, PoE+ RJ45 ports
  • (4) 10G SFP+ ports
  • (1) USP RPS DC input for power redundancy
  • 720W total PoE availability
  • 1.3" LCM color touchscreen with AR switch management
  • Warranty: 1 year on Part.
Order Now

Specification

  • Part Number: USW-Enterprise-48-PoE
  • Mechanical
  • Dimensions: 442 x 44 x 400 mm (17.4 x 1.7 x 15.7")
  • Weight: Without Mount: 6.2 kg (13.67 lb)
  • With Mount: 6.3 kg (13.89 lb)
  • Enclosure Material: SGCC Steel
  • Mount Material SGCC Steel
  • Hardware
  • Total Non-Blocking Throughput: 160 Gbps
  • Switching Capacity: 320 Gbps
  • Forwarding Rate: 238.095 Mpps
  • Max Power Consumption
  • (Excluding PoE Output): 150W
  • Power Method: (1) Universal AC input, 100-240VAC, 10A Max, 50/60 Hz
  • (1) USP-RPS DC input, 52VDC, 13.84A; 11.5VDC, 13A
  • Power Supply: AC/DC, Internal, 100-240V, 10A Max.
  • Management Interface: Ethernet In-Band
  • Networking Interfaces: (48) 100MbE/1GbE/2.5GbE RJ45 port
  • SFP+ Interfaces: (4) 1/10G SFP+ ports
  • PoE Interfaces: (48) PoE/PoE+ (Pins 1, 2+; 3, 6-)
  • Total Available PoE: 720W
  • Max. PoE+ Wattage per Port by PSE: 34.2W
  • Voltage Range PoE Mode: 44 to 57V
  • Voltage Range PoE+ Mode: 50 to 57V
  • Services: SMB Layer 3 PoE Gigabit Ethernet Switch
  • ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
  • LCM Display: (1) 1.3" LCM color touchscreen
  • Bootup Animation: Bootup in Progress
  • Firmware Upgrade Icon: Firmware Upgrading
  • Steady White: Factory Defaults, Awaiting Adoption
  • Steady Blue: Device is Adopted
  • Button: Factory Reset
  • Operating Temperature: -5 to 40° C (23 to 104° F)
  • Operating Humidity: 10 - 90% Noncondensing
  • Certifications: CE, FCC, IC
  • LED
  • Ethernet: White: Link or Activity
  • SFP+: White: Link or Activity
  • Warranty: 1 year on Part.
