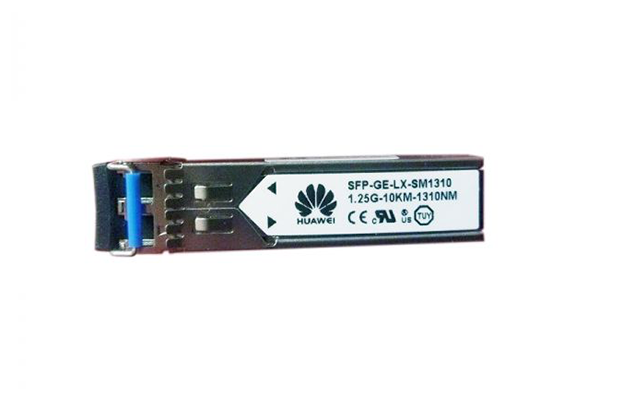

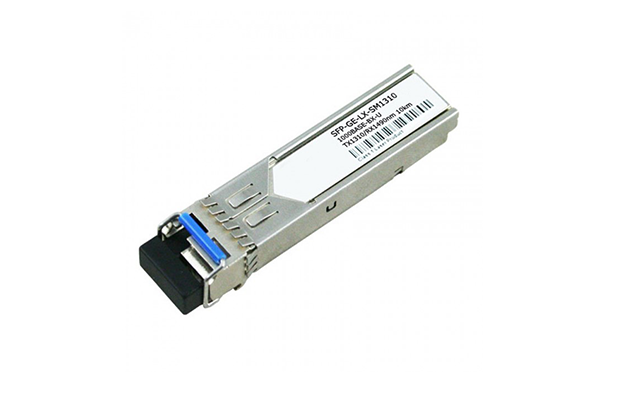

Huawei SFP-GE-LX-SM1310 Optical Transceiver

$ 52.00 $ 49.00
  • Part Number: SFP-GE-LX-SM1310
  • Huawei SFP-GE-LX-SM1310 Optical Transceiver
  • Optical Transceiver,eSFP,GE,Single-mode
  • Module(1310nm,10km,LC)
  • Warranty: 1 year on Part.
Order Now

Specification

  • Part Number: 02315200
  • Basic Information
  • Form factor: eSFP
  • Application standard: 1000BASE-LX10/LH
  • Connector type: LC
  • Optical fiber type: SMF
  • Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
  • Digital diagnostic monitoring (DDM): Supported
  • Transmission rate [bit/s]: 1 Gbit/s
  • Target transmission distance [km]: Single-mode fiber: 10 km
  • Transmitter Optical Characteristics
  • Center wavelength [nm]: 1310 nm
  • Maximum Tx optical power [dBm]: -3.0 dBm
  • Minimum Tx optical power [dBm]: -9.0 dBm
  • Minimum extinction ratio [dB]: 9 dB
  • Receiver Optical Characteristics
  • Rx sensitivity [dBm]: -20.0 dBm
  • Overload power [dBm]: -3.0 dBm
  • Warranty: 1 year on Part.
