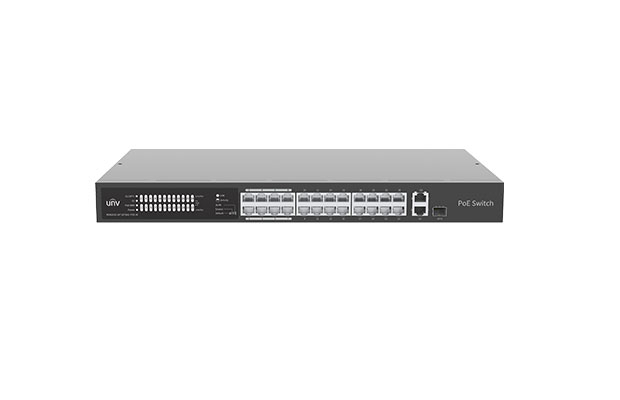

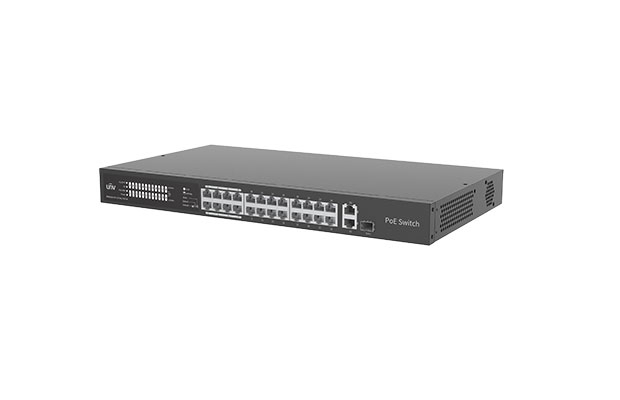

Uniview NSW2020-24T1GT1GC-POE-IN 24-Port Unmanaged PoE Switch

~~$ 210.00~~ $ 195.00

Part Number: NSW2020-24T1GT1GC-POE-IN
Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
Support port traffic control
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All metal housing, safe and reliable
Warranty: 1-year on part.

Specification

Part Number: NSW2020-24T1GT1GC-POE-IN
Ports Type: 24×100Mbps PoE ports (RJ45) + 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports
Switching capacity: 8.8 Gbps
Packet Buffer: 4 M bit
MAC: 16K
Forwarding performance: 6.55Mpps
Prior Ports: 1 to 8
Cooling Fans: 1
Mean Time Between Failure (MTBF): > 50000 hours
Dimensions (W×D×H): 440*250*44mm
Standards: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Max.Power: 390W
Operating humidity: 10%～90% (non-condensing)
Working Mode: Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports
PoE Mode: 802.3at/af , ModeB :(4/5+, 7/8-)
Weight: 2.93KG
