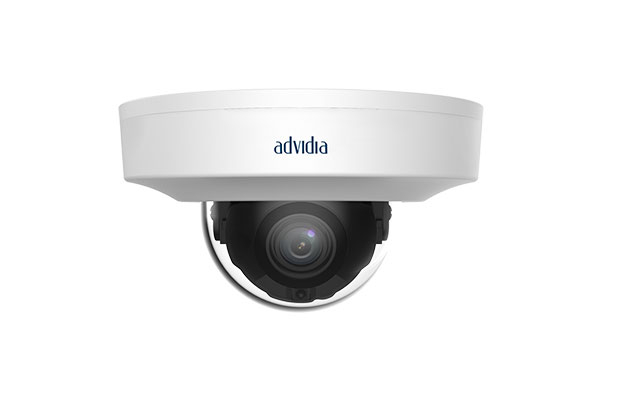

Advidia M-45-FW-V2 4MP Indoor Dome Network Camera

~~$ 230.00~~ $ 219.00

Part Number: M-45-FW-V2
4MP 30fps (2688 x 1520)
WDR 120dB
Built-in IR LED
Built-in mic
2.8 mm lens
VideoInsight VMS license bundled
Warranty: 1-Years on part.

Order Now

Specification

Part Number: M-45-FW-V2
Device
Image Sensor: 1/2.7", 4.0 Megapixel, Progressive Scan, CMOS
Min Illumination: Color: 0.003Lux (F1.6, AGC ON) | 0Lux with IR
Shutter Time: Auto/Manual, 1 ~ 1/100000s
Lens: 2.8mm@F1.6
WDR: 120 dB
Angle of View: H: 101.1°, V: 55.3°, 111.1°
Angle Adjustment: Pan: 0° ~ 348° | Tilt: -66° ~ 66° | Rotate: 0° ~ 346°
3-Axis Adjustment: Yes
Day/Night: IR-Cut Filter with Auto Switch (ICR)
IR Range: Up to 30m (98ft) IR range
Compression Standard
Video Compression: Ultra 265, H.265, H.264, MJPEG
Video Bit Rate: 128 Kbps~16 Mbps
Tri-Stream: Yes
Analytics: Intrusion, Human Body Detection, Motion Detection, Tampering Alarm, Audio Detection
Max. Image Resolution: 2688 x 1520
Frame Rate: 30fps (2688 x 1520)
ROI Codec: Up to 8 areas
Image Setting: White Balance, Digital Noise Reduction, Smart IR, Flip, HLC, BLC, Defog
Network
Alarm Channels: 1 Channel In | 1 Channel Out
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Interface
Communication Interface: 10M/100M Base-TX Ethernet
Local Storage: Micro SD, up to 256GB
Audio: Input: Impedance 35kΩ; Amplitude 2V [p-p]
Output: Impedance 600Ω; Amplitude 2V [p-p]
General
Safety: IEC 62368-1, EN 62368-1, UL 62368-1
EMC: FCC CFR 47 Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013
Operating Conditions: Temperature: -30°C ~ 55°C (-22°F ~ 131°F), Humidity: ≤95% RH (Non-Condensing)
Power Consumption: Max 4.5W
Power Supply: DC 12V±25%, PoE (IEEE 802.3af)
Weather Proof Rating: –
Vandal Resistant: –
Dimensions: Φ109 x 62mm (Ø4.3” x 2.4”)
Weight: 0.22kg (0.49lb).
