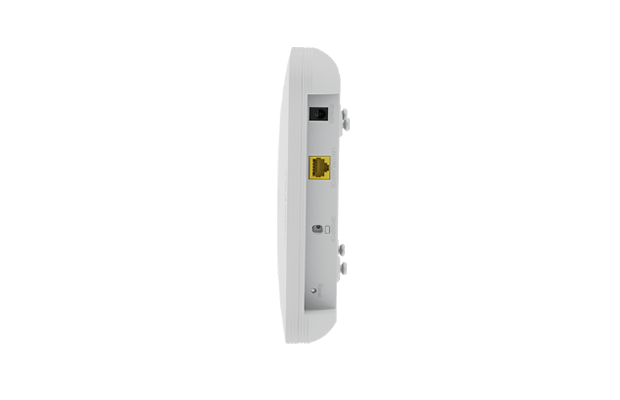

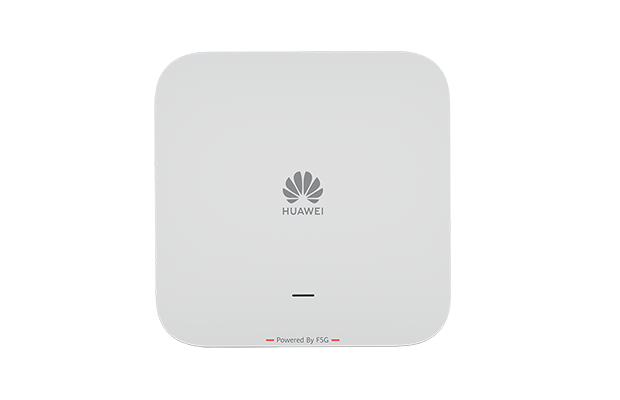

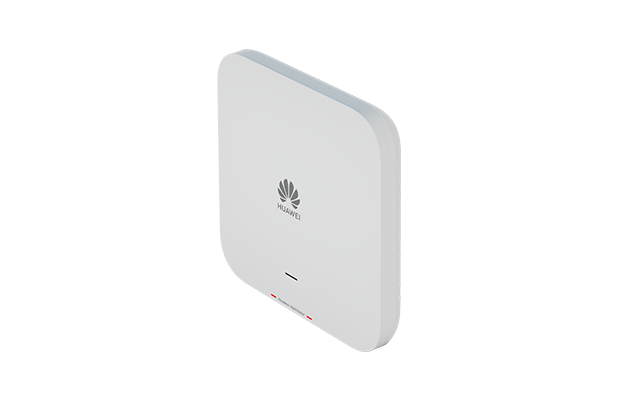

Huawei F600C-30-1GH Multi-service Access Point

~~$ 100.00~~ $ 95.00

Part Number: F600C-30-1GH
10/100/1000 Mbit/s speed
IEEE 802.11 ax (2.4GHz&5GHz)
2 x 2 MIMO (2.4 GHz & 5 GHz)
Antenna gain: 5 dBi
574 Mbps (2.4 GHz)
2402 Mbps (5 GHz)
Warranty: 1 year on Part.

Order Now

Specification

Part Number: F600C-30-1GH
Hardware Specifications
Dimensions (height x width x depth): 38mm x 200mm x 200mm
Weight (excluding adapter): Approximately 0.6 kg
Power supply: 12 V DC, 1.5 A (power obtained through adapter) 56 V DC, 0.3 A (fiber optic power supply)
Rated input range of power adapter: 100–240 V AC, 50/60 Hz
Static power consumption: 6 W
Maximum power consumption: 11 W
Fiber port: GPON Uplink (Port Type: XC/UPC)
Button: Reset button.
Ports: NNI: GPON; UNI: 1 GE + 2.4 GHz & 5 GHz Wi-Fi 6
Indicator: WLAN operation indicator
Operating temperature: –10°C to +50°C
Operating humidity: 5%–95% RH, non-condensing
Installation mode: Ceiling installation
Wi-Fi specifications
Supported protocol: IEEE 802.11 ax (2.4GHz&5GHz)
MIME: 2 x 2 MIMO (2.4 GHz & 5 GHz)
Antenna gain: 5 dBi
Air interface rate: 574 Mbps (2.4 GHz) nad 2402 Mbps (5 GHz)
Maximum transmit power (Tx): 23 dBm NOTE: Actual transmit (Tx) power varies depending on local laws and regulations
Frequency band: 20/40/80/160 MHz
Others: 1024-QAM, WPA3, DL MU MIMO
Port Parameters
GPON port:
Port Type: SC/UP
Complies with ITU-T G.984.2, Class B+
Receiver Sensitivity: –27 dBm to –29 dBm
Overload optical power: –8 dBm
Transmission rate: downlink speed 2.488Gbit/s, uplink speed 1.244Gbit/s
GE Port:
The PoE port supports PoE and PoE+ functions and complies with IEEE 802.3af and IEEE 802.3at
Port Type: RJ45
Auto-detection of 10/100/1000 Mbit/s speed
MDI/MDIX Auto Configuration
Setting the number of learnable MAC addresses
Ethernet port based VLAN transparent filtering and transmission.
Product Features
Smart connectivity:
Uplink mode: Uplink fiber transmission
Mode of operation: bridge
O&M (Operations and Maintenance):
Web User Interface
Diagnose Internet connection status and hardware status with one click
Warranty: 1 year on Part.
