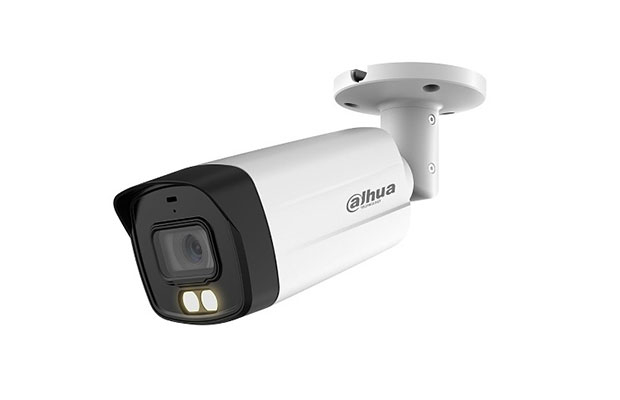

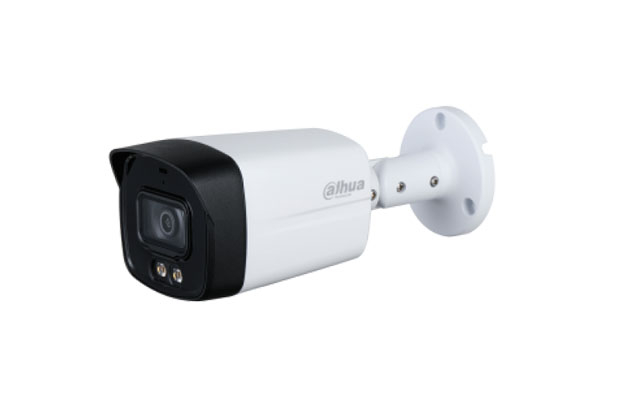

Dahua HAC-HFW1509TMP-IL-A 5MP Smart Dual Illuminators Bullet Camera

~~$ 56.00~~ $ 50.00

Part Number: HAC-HFW1509TMP-IL-A
Max 25 fps@5MP (16:9 video output).
120 dB true WDR, 3D NR.
Smart Dual Illuminators.
40 m illumination distance.
Super Adapt.
Built-in MIC.
3.6 mm fixed lens (2.8 mm optional).
CVI/CVBS/AHD/TVI switchable.
IP67, 12 VDC.
Warranty: 1-Year on part.

Order Now

Specification

Part Number: HAC-HFW1509TMP-IL-A
Camera
Pixel: 5MP
Image Sensor: 5MP CMOS
Max. Resolution: 2880 (H) × 1620 (V)
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/3 s–1/100000 s; NTSC: 1/4 s–1/100000 s
Min. Illumination: 0.001 lux@F1.0 (Color, 30 IRE); 0.0001 lux@F1.0 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio: >65dB
Illumination DistanceL IR: 40 m (131.23 ft); Warm light: 40 m (131.23 ft)
Illuminator On/Off Control: Auto; manual
Illuminator Number: 2 (IR light), 2 (Warm light)
Pan/Tilt/Rotation Range: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
Lens
Lens Type: Fixed-focal
Mount Type: M12
Focal Length: 2.8 mm; 3.6 mm
Max. Aperture: F1.0
Field of View: 2.8 mm: H: 111°; V: 57°; D: 131° & 3.6 mm: H: 89°; V: 47°; D: 104°
Iris Control: Fixed
Close Focus Distance: 2.8 mm: 1.5 m (4.92 ft) & 3.6 mm: 2.2 m (7.22 ft)
DORI distance Lens: 2.8 mm, 3.6 mm
DORI distance Detect: 66.0 m (216.54 ft), 78.0 m (255.91 ft)
DORI distance Observe: 26.4 m (86.61 ft), 31.2 m (102.36 ft)
DORI distance Recognize: 13.2 m (43.31 ft), 15.6 m (51.18 ft)
DORI distance Identify: 6.6 m (21.65 ft), 7.8 m (25.59 ft)
Video
Video Frame Rate
CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps;
AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps;
TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps;
CVBS: PAL: 960H; NTSC: 960H
Resolution: 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night: Auto (ICR)/Color/B/W
BLC: BLC; HLC; WDR; HLC-Pro
WDR: 120dB
White Balance: Auto; Area white balance
Gain Control: Auto; manual
Noise Reduction: 3D NR
Defog: Electronic defog
Digital Zoom: 4×
Mirror: Yes
Privacy Masking: Off/On (8 areas, rectangle)
Illumination Mode: Smart IR&WL; WL Mode; IR Mode
Certifications
Certifications: CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)
Port
Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input: One channel built-in MIC
Power
Power Supply: 12V ± 30% DC
Power Consumption: Max 5.7 W (12 VDC, LED on)
Environment
Operating Temperature: –40 °C to +60 °C (–40 °F to 140 °F)
Operating Humidity: <95% (RH), non-condensing
Storage Temperature: –40 °C to +60 °C (-40 °F to 140 °F)
Protection: IP67
Structure
Casing Material: Metal
Product Dimensions: 240.7 mm × 90.7 mm × 90.7 mm (9.48" × 3.57" × 3.57")
Packaging Dimensions: 299 mm × 119mm × 111 mm (11.77" × 4.69" × 4.37")
Net Weight: 0.7 kg (1.54 lb)
Gross Weight: 0.89 kg (1.96 lb)
Installation: Wall mount; ceiling mount; vertical pole mount
